| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Current | |
| For Measuring | |
| Frequency | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage | |
| Voltage Supply |

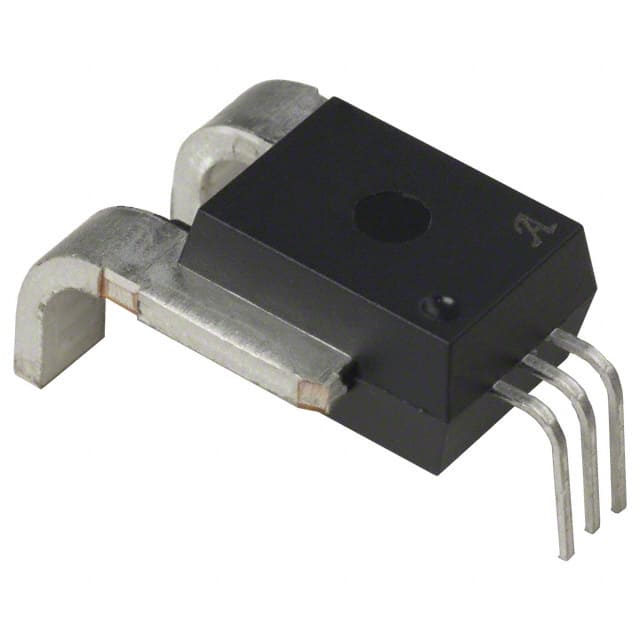

The Allegro MicroSystems ACS756KCA-050B-PFF-T is a Hall Effect based linear current sensor IC designed for AC or DC current sensing in industrial, automotive, commercial, and communications systems. It offers a sensing range of up to 50A with a typical sensitivity of 40mV/A and an accuracy of ±7.5%.
This sensor operates from a supply voltage of 3V to 5.5V and features a wide operating temperature range of -40°C to 125°C. The output is ratiometric to the supply voltage. The device is packaged in a 5-CA Formed Leads, PFF configuration and is designed for through-hole mounting.
It is important to note that this part is classified as NOT FOR NEW DESIGN, indicating that its sale is restricted to existing customer applications due to probable obsolescence in the near future. Recommended substitutions for new designs include the ACS770xCB series.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This sensor can measure up to 50A.
It is a Hall Effect, Open Loop sensor.
The operating voltage range is 3V to 5.5V.
The operating temperature range is -40°C to 125°C.
No, this part is classified as NOT FOR NEW DESIGN and is restricted to existing customer applications.
