| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,996 pcs
|
8996 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Frequency | |
| Linearity | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output | |
| Polarization | |
| Response Time | |
| Sensitivity | |
| Sensor Type | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Supply |

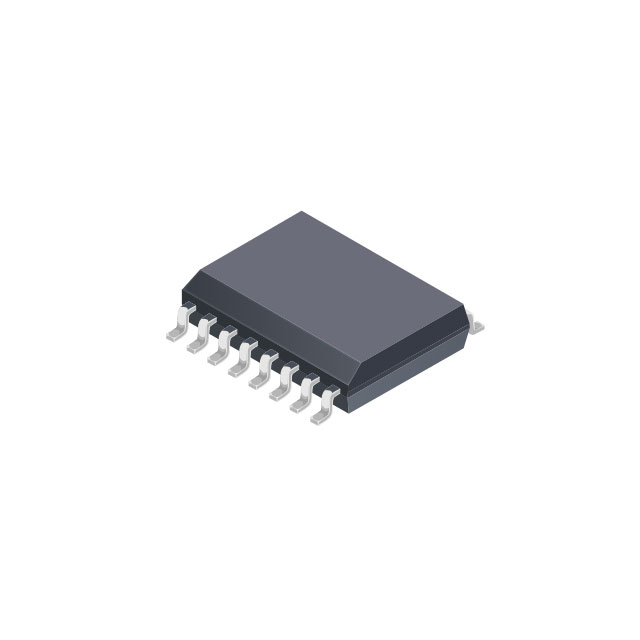

The Allegro MicroSystems ACS710KLATR-12CB is a bidirectional Hall effect current sensor designed for AC and DC current measurements up to 12.5A. It features an open-loop design and provides a ratiometric voltage output. The sensor operates within a supply voltage range of 3V to 5.5V and has a maximum supply current of 14.5mA.
With a sensitivity of 56mV/A and an accuracy of ±2.2%, the ACS710KLATR-12CB is suitable for various applications requiring precise current monitoring. Its frequency response ranges from DC up to 120kHz, and it offers a fast response time of 4µs. The linearity is rated at ±0.75%.
This component is housed in a 16-SOIC package with a surface mount type. The operating temperature range is from -40°C to 125°C. The product is RoHS3 compliant and has an MSL rating of 1.
Key specifications include a 12.5A sensing capability, Hall effect technology, and a bidirectional polarization. The output is ratiometric, and the operating voltage is between 3V and 5.5V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.14 | $0.14 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ACS710KLATR-12CB can sense currents up to 12.5A.
It is a Hall Effect, Open Loop sensor.
The operating voltage supply range is 3V to 5.5V.
The operating temperature range is -40°C to 125°C.
It is supplied in a 16-SOIC package for surface mounting.
