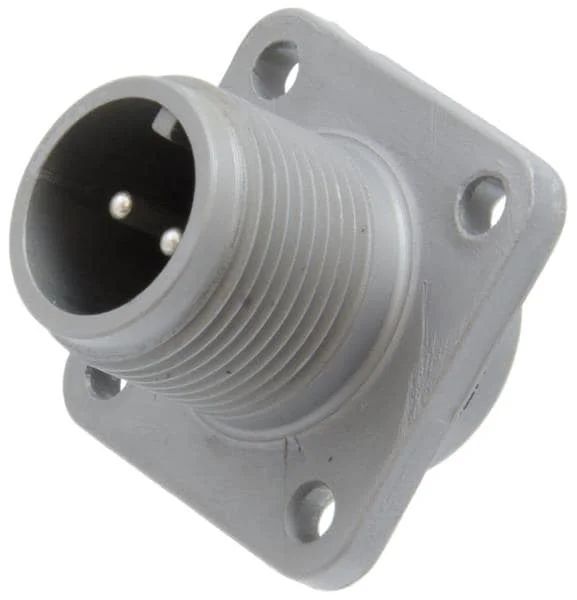

ACS02E14S-5P(072) The Amphenol ACS02E14S-5P(072) is a receptacle connector with 5 positions and a 13A current rating. It features a square flange shell style and panel mounting.
Mfr Part #:

ACS02E14S-5P(072)

Available from 1 distributors
Mfr Name: Amphenol
Amphenol
The Amphenol ACS02E14S-5P(072) is a receptacle connector with 5 positions and a 13A current rating. It features a square flange shell style and panel mounting.
✓ Total Stock: 100 pcs
$ Price Range: $1.00

ACS02E14S-5P(072) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Risen Electronics ✓
Non-Authorised Inventory information
100 pcs
On Request
100 pcs On Request 1 On Request On Request On Request On Request 2026-02-16 21:33:16
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACS02E14S-5P(072) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Material
Contact Plating
Current Rating
Failure Rate
Mounting Style
Positions
Product Type
Shell Size
Shell Style
Termination Style
View Similar Products (0)

ACS02E14S-5P(072) Description

Short technical summary and product information.

This Amphenol ACS02E14S-5P(072) is a circular connector receptacle from the AC series. It is designed for panel mounting and features a square flange shell style. The connector has 5 positions and a current rating of 13A. The contact material is Copper Alloy with Silver plating, and the contact gender is Pin (Male). The termination style is solder.



This connector complies with MIL-DTL-5015 standards. It is suitable for applications requiring a robust and reliable connection. The insert arrangement is specified as 14S-05.



Environmental compliance includes RoHS3 compliance, MSL 1 Unlimited, and REACH Unaffected status. The connector is designed for industrial applications where durability and performance are critical.

ACS02E14S-5P(072) Quick Information

Product Type: Receptacle
Series: AC
Canonical Name: Amphenol ACS02E14S-5P(072) Receptacle
Subcategory: Circular Connector Assembly

ACS02E14S-5P(072) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACS02E14S-5P(072) Estimated Pricing

Qty Low High
1+ $1.00 $1.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACS02E14S-5P(072) Features

  • 5 position receptacle connector.
  • 13A current rating.
  • Panel mount square flange shell.
  • MIL-DTL-5015 compliant.
  • Solder termination style.

ACS02E14S-5P(072) Applications

  • Used in military and aerospace interconnect systems.
  • Suitable for industrial power and signal connections.
  • Ideal for panel-mounted equipment requiring MIL-spec reliability.
  • Common in heavy machinery and vehicle electrical systems.

ACS02E14S-5P(072) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the ACS02E14S-5P(072) have?

5 positions.

What is the current rating of this connector?

13 A.

What mounting style does this connector use?

Panel mount.

What termination style does it use?

Solder.

What is the contact material and plating?

Copper alloy contacts with silver plating.

What is the shell size?

14S.

Is this connector MIL-DTL-5015 compliant?

Yes, it is MIL-DTL-5015 type.
