| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,300 pcs
|
2300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Finish | |
| Housing Material | |
| Insulation Resistance | |
| Mating Cycles | |
| Mounting Type | |
| Operating Temperature | |
| Positions | |
| Shell Finish | |
| Termination |

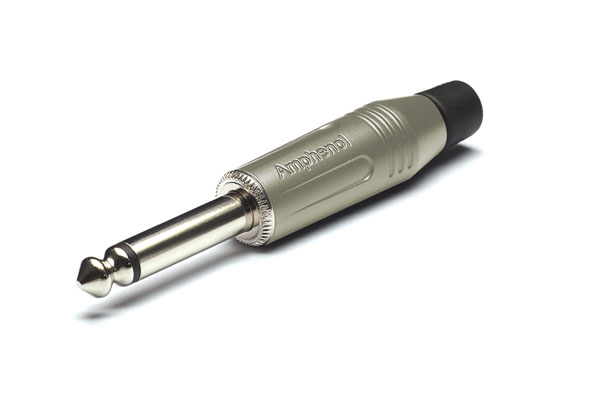

The Amphenol ACPM-GN is a 1/4" mono phone plug designed for audio and lighting applications. It features a durable diecast zinc alloy housing with a nickel shell and nickel sleeve and tip finish.
This connector provides 2 positions and is rated for a current carrying capacity of 10A. It utilizes solder termination and supports a maximum wire gauge of AWG 16. The operating temperature range is from -25°C to +70°C.
The ACPM-GN has an IP40 rating, indicating protection against solid objects larger than 1mm and no protection against water. It meets flammability rating UL94V-0 or UL94-HB and complies with EU RoHS 2 Directive 2011/65/EU.
With a minimum of 1000 mating cycles, this plug is built for reliability in demanding environments. Its insulation resistance is rated at 10³ Meg Ω after a Damp Heat Test.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -25°C to +70°C.
The current carrying capacity is 10A.
The ACPM-GN uses solder termination.
The maximum wire gauge supported is AWG 16.
The flammability rating is UL94V-0 or UL94-HB.
The insulation resistance is 10³ MΩ after Damp Heat Test.
The ACPM-GN can withstand a minimum of 1000 mating cycles.
