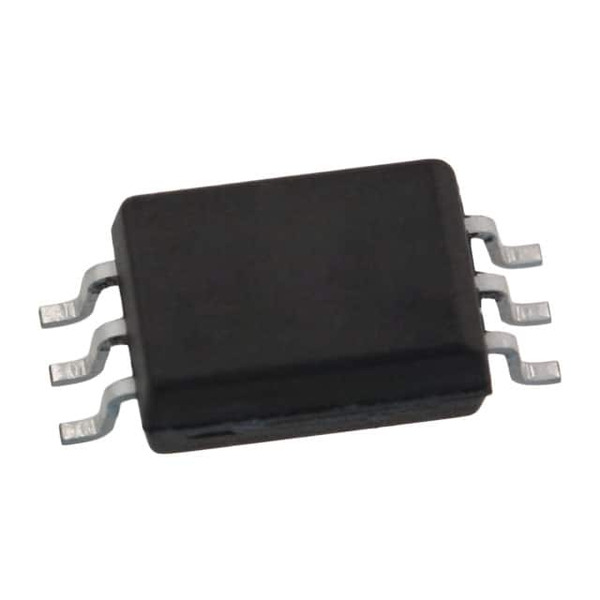

The Avago Technologies ACPL-W61L-060E is a single-channel optoisolator designed for logic output applications. It provides a high isolation voltage of 5000Vrms, ensuring robust safety and signal integrity between input and output circuits.
This optoisolator supports a data rate of up to 10MBd, making it suitable for high-speed digital interfaces. Key electrical characteristics include a supply voltage range of 2.7V to 5.5V, a typical forward voltage of 1.3V, and a maximum output current of 10mA per channel. It also features a fast propagation delay of 80ns maximum and rise/fall times of 12ns typical.
The ACPL-W61L-060E operates within a temperature range of -40°C to 105°C, ensuring stable performance in various environments. It is packaged in a surface mount 6-SOIC (0.180", 4.58mm width) stretched package, compatible with tape and reel.
Applications for this device include industrial automation, high-speed digital interfaces, motor control circuits, switch mode power supplies, data communication systems, and microcontroller or DSP interfacing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.50 | $0.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ACPL-W61L-060E has a data rate of 10MBd.
The isolation voltage is 5000Vrms.
The operating temperature range is -40°C to 105°C.
The supply voltage range is 2.7V to 5.5V.
The ACPL-W61L-060E is available in a 6-SO Stretched surface-mount package.
The output type is push-pull, totem pole.
The maximum propagation delay is 80ns.
