Mfr Part #:

ACPL-W341-500E

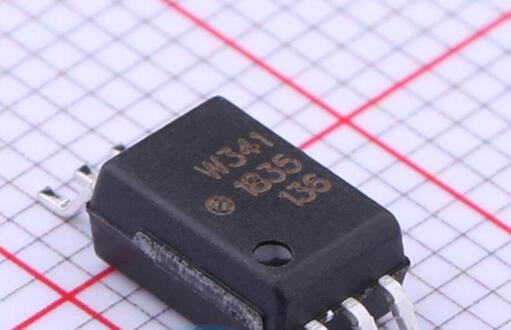

The Avago Technologies ACPL-W341-500E is a logic output optocoupler designed for driving power IGBTs and MOSFETs. It offers 5000Vrms isolation and a 3A peak output current.

✓ Total Stock: 25,849 pcs

$ Price Range: $2.00

ACPL-W341-500E Available from 5 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Optech Co.,Limited ✓ Non-Authorised Inventory information	17,000 pcs On Request	17000 pcs	On Request	1	On Request	On Request	24+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	8,500 pcs On Request	8500 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	235 pcs On Request	235 pcs	On Request	1	On Request	On Request	1625+	On Request	On Request
Risen Electronics ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Partservice ✓ Non-Authorised Inventory information	14 pcs On Request	14 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ACPL-W341-500E Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Avago Technologies
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature	-40°C ~ 105°C
Supplier Device Package	6-SO Stretched
Tape & Reel	Yes
Technology	Optical Coupling

View Similar Products (0)

ACPL-W341-500E Description

Short technical summary and product information.

The ACPL-W341-500E from Avago Technologies is an optocoupler specifically designed as a gate driver for power IGBTs and MOSFETs, commonly used in motor control inverter applications. It features an AlGaAs LED optically coupled to an integrated circuit with a power output stage.

Key electrical specifications include a 5000Vrms isolation voltage and a minimum common mode transient immunity of 35kV/µs. The device can deliver a peak output current of 3A and a continuous output current of 2.5A. It operates with an output supply voltage range of 15V to 30V and has a typical forward voltage of 1.55V at 25mA DC forward current.

This optocoupler is suitable for direct driving IGBTs with ratings up to 1200V / 100A. For higher-rated IGBTs, it can drive a discrete power stage. The operating temperature range is -40°C to 105°C.

The ACPL-W341-500E is available in a 6-SOIC (Stretched) surface mount package, facilitating integration into various electronic circuits.

ACPL-W341-500E Quick Information

Product Type: Optocoupler Gate Driver

Series: ACPL-W341

Canonical Name: ACPL-W341-500E Logic Output Optocoupler Gate Drive Opto IC

Subcategory: Gate Driver

ACPL-W341-500E Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ACPL-W341-500E Estimated Pricing

Qty	Low	High
1+	$2.00	$2.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACPL-W341-500E Features

Provides 5000Vrms isolation voltage.
Delivers 3A peak output current.
Operates from -40°C to 105°C.
Surface mount 6-SOIC package.
Suitable for IGBT and MOSFET driving.

ACPL-W341-500E Applications

Ideal for IGBT and MOSFET gate drive.
Use in motor control and inverter systems.
Suitable for industrial power supplies.
For high voltage isolation applications.
