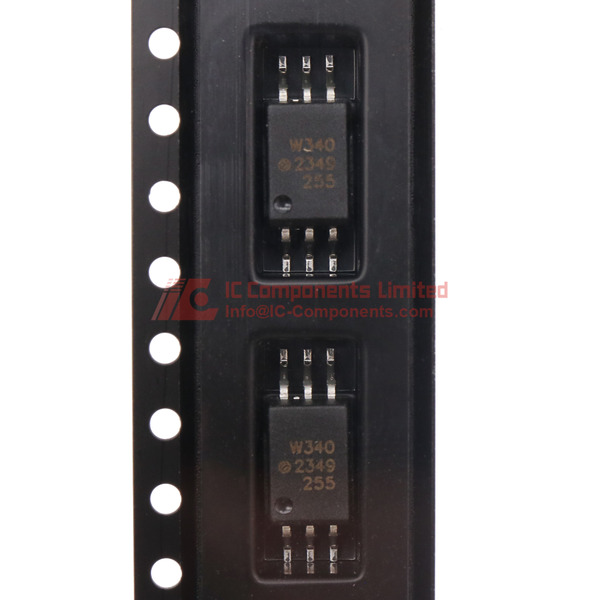

ACPL-W340-500E The Broadcom Limited ACPL-W340-500E is a 1-channel optocoupler gate driver with 5KV isolation. It operates from a 15V to 30V supply and features a surface mount 6-SOIC package.
Mfr Part #:

ACPL-W340-500E

Available from 3 distributors
Mfr Name: Avago Technologies
Avago Technologies
The Broadcom Limited ACPL-W340-500E is a 1-channel optocoupler gate driver with 5KV isolation. It operates from a 15V to 30V supply and features a surface mount 6-SOIC package.
✓ Total Stock: 4,559 pcs
$ Price Range: $4.30

ACPL-W340-500E Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Non-Authorised Inventory information
2,253 pcs
2253 pcs On Request 1 On Request On Request 21+ On Request On Request
Non-Authorised Inventory information
1,837 pcs
1837 pcs On Request 1 On Request On Request On Request On Request On Request
Non-Authorised Inventory information
469 pcs
469 pcs On Request 1 On Request On Request 17+ On Request On Request

ACPL-W340-500E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
SVHC Present
Tape & Reel

ACPL-W340-500E Description

Short technical summary and product information.

The ACPL-W340-500E from Broadcom Limited is a single-channel optocoupler designed as a gate driver. It provides 5000Vrms of isolation, making it suitable for applications requiring high voltage separation.



Key electrical specifications include an output supply voltage range of 15V to 30V and a typical forward voltage of 1.55V. The device supports a peak output current of 1A and output currents of 800mA high and low. Its typical rise and fall times are 43ns and 40ns respectively, with a maximum pulse width distortion of 70ns and maximum propagation delay of 200ns.



Packaged in a 6-SOIC (0.268", 6.80mm Width) format, the ACPL-W340-500E is designed for surface mounting. It operates within a temperature range of -40°C to 105°C. The common mode transient immunity is a minimum of 35kV/µs, ensuring robust performance in noisy environments.



This gate driver optocoupler is suitable for various industrial applications where reliable signal isolation and driving capabilities are essential.

ACPL-W340-500E Quick Information

Product Type: Gate Driver Optocoupler
Series: ACPL-W
Canonical Name: ACPL-W340-500E Optocoupler Gate Driver
Subcategory: Gate Driver

ACPL-W340-500E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACPL-W340-500E Estimated Pricing

Qty Low High
1+ $4.30 $4.30

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACPL-W340-500E Features

  • Provides 5000Vrms of isolation.
  • Delivers 1A peak output current.
  • Operates from 15V to 30V supply.
  • Surface mount 6-SOIC package.
  • Wide -40°C to 105°C operating temperature.

ACPL-W340-500E Applications

  • Ideal for power supply isolation.
  • Suitable for motor drive control.
  • Used in industrial automation systems.
  • Applicable for high-voltage interfaces.

ACPL-W340-500E FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range?

15V to 30V.

What is the package type?

6-SOIC (0.268", 6.80mm Width) surface mount package.

What is the operating temperature range?

-40°C to 105°C.

What is the isolation voltage?

5000Vrms.

What is the peak output current?

1A.

What is the propagation delay?

200ns maximum.

What is the common mode transient immunity?

35kV/µs minimum.
