| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Lead Style | |
| Load Current | |
| Mounting Type | |
| Number of Channels | |
| Output Type | |
| SVHC Present | |
| Slew Rate |

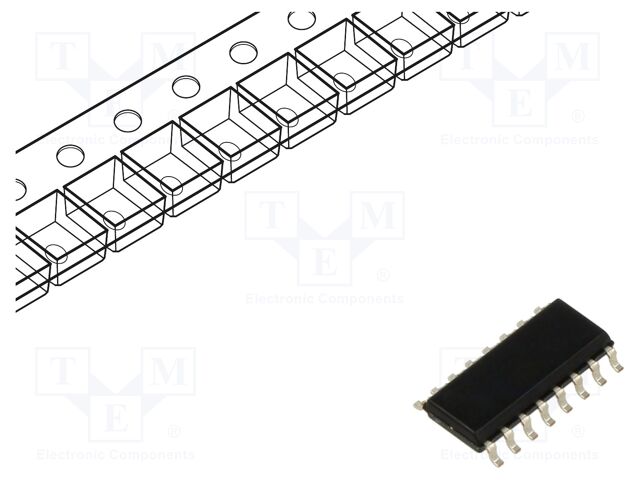

The ACPL-336J-000E from Broadcom (Avago) is a single-channel optocoupler designed for IGBT driving applications. It provides a high insulation voltage of 5kV, ensuring electrical isolation in demanding environments. The device features a fast slew rate of 30kV/μs, enabling efficient switching.
This optocoupler is housed in an SMD SO16 package, suitable for surface-mount assembly. It has a maximum off-state voltage of 5V and a load current of 20mA. The component is categorized under Isolators - Gate Drivers.
Key specifications include a 1 channel configuration and an IGBT driver output type. The ACPL-336J-000E is designed for applications requiring reliable signal isolation and high-speed performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The insulation voltage is 5kV.
The slew rate is 30kV/μs.
It has an IGBT driver output.
It has 1 channel.
The maximum off-state voltage is 5V.
The load current is 20mA.
It is in an SO16 package, suitable for SMD mounting.
