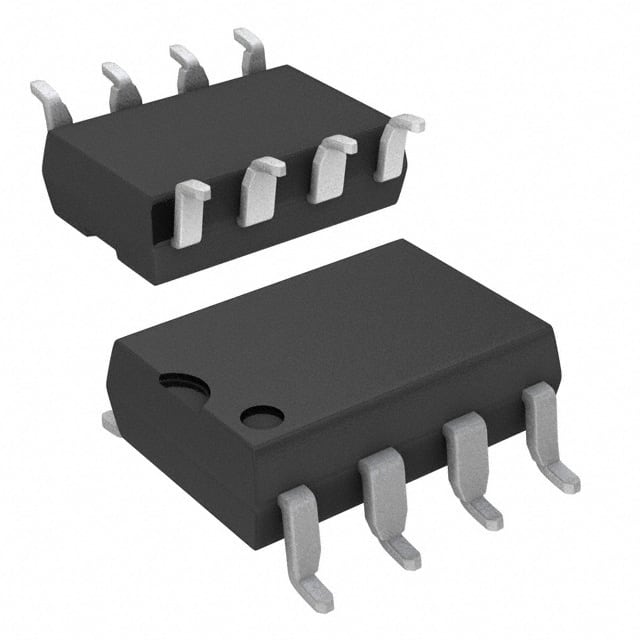

The Broadcom Limited ACPL-3130-360E is a single-channel gate driver utilizing optical coupling technology. It provides a robust isolation voltage of 3750Vrms, ensuring safety and signal integrity in demanding applications.
Key electrical specifications include a peak output current of 2.5A and typical output high/low currents of 2A. The device features a common mode transient immunity of 40kV/µs, minimizing susceptibility to noise. Propagation delay is a maximum of 500ns, with a pulse width distortion maximum of 300ns. Typical rise and fall times are 100ns.
This gate driver operates within a temperature range of -40°C to 100°C and requires an output supply voltage between 15V and 30V. It is designed for surface mount applications and comes in an 8-SMD, Gull Wing package, with the supplier device package specified as 8-DIP Gull Wing. The component is approved by CSA, IEC/EN/DIN, and UR agencies.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ACPL-3130-360E has an isolation voltage of 3750Vrms.
The peak output current for the ACPL-3130-360E is 2.5A.
The operating temperature range is -40°C to 100°C.
The ACPL-3130-360E is in an 8-SMD, Gull Wing package.
The common mode transient immunity is a minimum of 40kV/µs.
