Mfr Part #:

ACPL-227-50BE

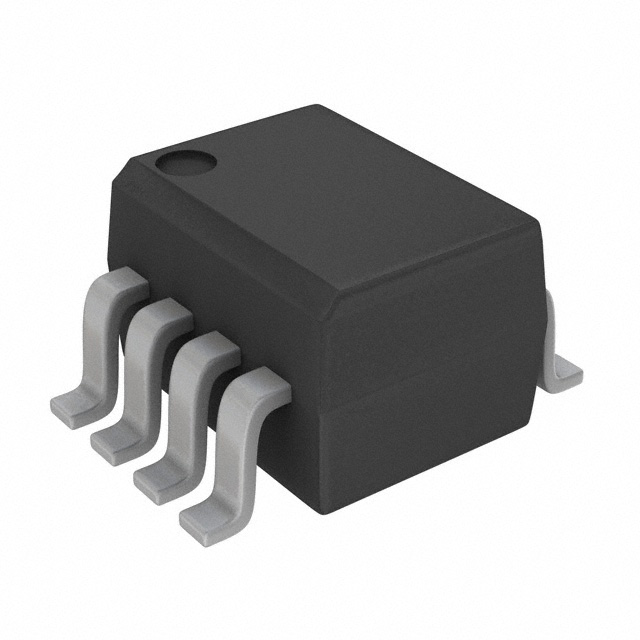

Name: ACPL-227-50BE
Brand: Broadcom Limited
SKU: ACPL-227-50BE

Mfr Name: Broadcom Limited

Description:

OPTOISOLATOR 3KV 2CH TRANS 8-SO

Stock on Request

ACPL-227-50BE Description

Short technical summary and product information.

OPTOISOLATOR 3KV 2CH TRANS 8-SO

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Optoisolators - Transistor, Photovoltaic Output
Manufacturer Name	Broadcom Limited
Current	50 mA
Current Transfer Ratio (Max)	260% @ 5mA
Current Transfer Ratio (Min)	130% @ 5mA
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	2
Operating Temperature	-55°C ~ 110°C
Output Type	Transistor
Rise	2µs, 3µs
Supplier Device Package	8-SO
Turn On	3µs, 3µs
Vce Saturation (Max)	400mV
Voltage	3000Vrms
