| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,100 pcs
|
8100 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Forward Voltage | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| SVHC Present |
The Avago Technologies ACPL-217-70CE is a 2-channel optocoupler designed for signal isolation applications. It provides a high isolation voltage of 3000Vrms, ensuring safety and reliability in various electronic circuits.
Key electrical specifications include a maximum output voltage of 80V and a typical forward voltage of 1.2V at 5mA. The device offers a typical turn-on/turn-off time of 3µs and a rise/fall time of 2µs, making it suitable for moderate-speed switching applications. The current transfer ratio ranges from 130% to 260% at 5mA.

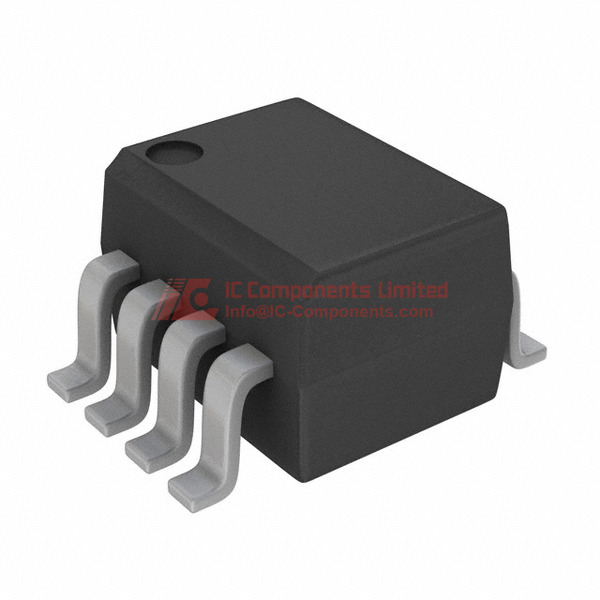

This optocoupler is housed in a standard 8-SOIC surface mount package, facilitating easy integration into printed circuit boards. It operates within an extended temperature range of -55°C to 110°C, making it robust for demanding environments. The ACPL-217-70CE is compliant with RoHS3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ACPL-217-70CE has an isolation voltage of 3000 Vrms.
The current transfer ratio is 130% minimum and 260% maximum at 5mA.
The operating temperature range is -55°C to 110°C.
The ACPL-217-70CE is available in an 8-SOIC surface mount package.
The ACPL-217-70CE has 2 channels.
The typical forward voltage is 1.2V at 5mA.
The maximum output voltage is 80V.
