| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 17+20+22+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Common Mode Transient Immunity (Min) | |
| Current | |
| Data Rate | |
| Input Type | |
| Inputs | |
| Lead Spacing | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay tpLH | |
| Rise | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |

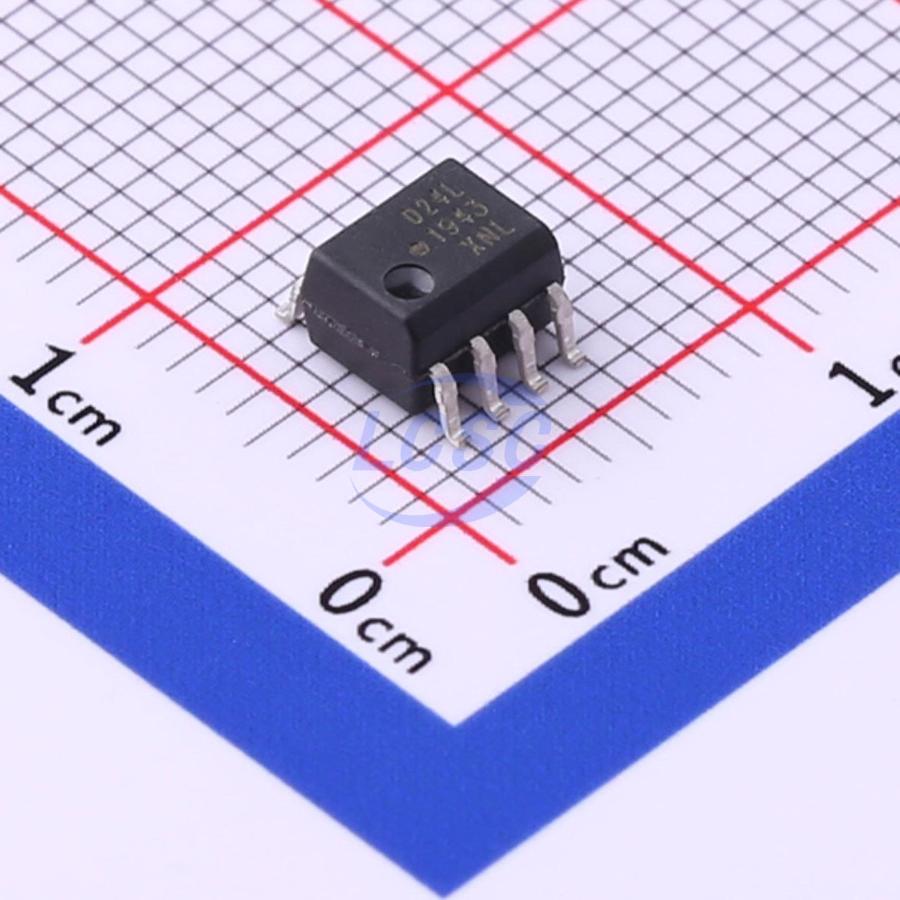

This Broadcom Limited ACPL-024L-500E is a 2-channel optoisolator designed for logic output applications. It provides 3750Vrms of isolation and supports a data rate of 5MBd.
The device features a push-pull, totem pole output type and a DC input. It operates within a temperature range of -40°C to 105°C and has a minimum common mode transient immunity of 25kV/µs.
Packaged in an 8-SO Tall or 8-SOIC (0.154", 3.90mm Width) format, this optoisolator is designed for surface mount applications. The input current is rated at 8mA, with rise and propagation delay times of 11ns and 250ns respectively.
This component is suitable for applications requiring reliable signal isolation and data transmission in a compact surface-mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.94 | $0.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The ACPL-024L-500E provides 3750Vrms of isolation.
The operating temperature range is -40°C to 105°C.
The optoisolator supports a data rate of 5MBd.
This device has 2 channels.
It features a Push-Pull, Totem Pole output type.
The ACPL-024L-500E is supplied in an 8-SO Tall or 8-SOIC (0.154", 3.90mm Width) package.
