Mfr Part #:

ACNV2601-500E

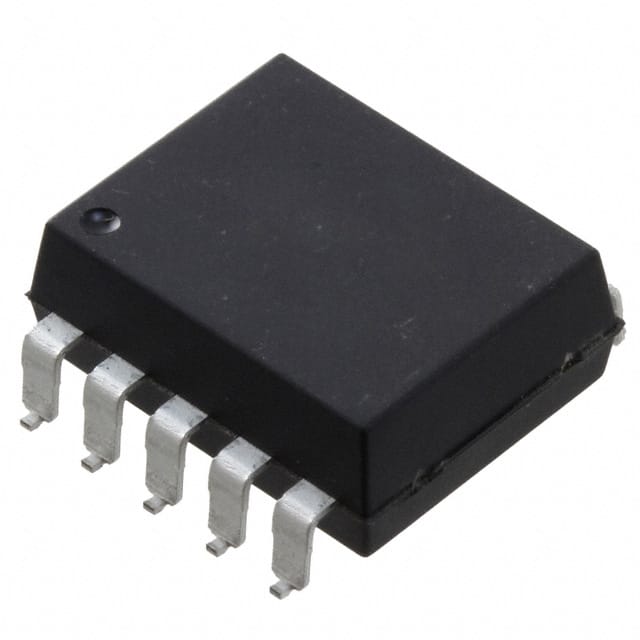

Name: ACNV2601-500E
Brand: Broadcom Limited
SKU: ACNV2601-500E

Mfr Name: Broadcom Limited

Description:

OPTOISO 7.5KV OPEN COLL 10DIP GW

Stock on Request

ACNV2601-500E Description

Short technical summary and product information.

OPTOISO 7.5KV OPEN COLL 10DIP GW

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

ACNV2601-300E

Broadcom Limited

OPTOISO 7.5KV OPEN COLL 10DIP GW

Category	Optoisolators - Logic Output
Manufacturer Name	Broadcom Limited
Common Mode Transient Immunity (Min)	20kV/µs
Current	20mA
Data Rate	10MBd
Input Type	DC
Inputs	1/0
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature	-40°C ~ 105°C
Output Type	Open Collector, Schottky Clamped
Propagation Delay tpLH	80ns, 80ns
Rise	25ns, 10ns
Supplier Device Package	10-DIP Gull Wing
Voltage	7500Vrms
