| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,100 pcs
|
32100 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
19,269 pcs
|
19269 pcs | On Request | 1 | On Request | On Request | 0724+ | On Request | On Request | |
|
463 pcs
|
463 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
375 pcs
|
375 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
145 pcs
|
145 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-04-21 02:15:19 |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |

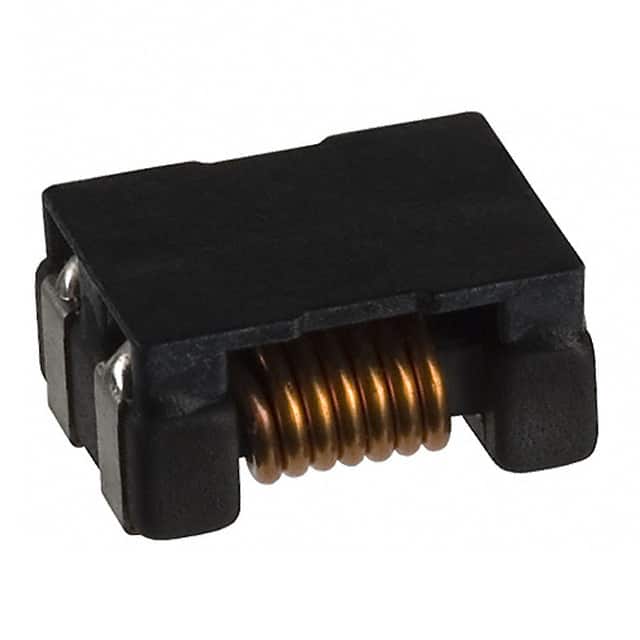

This is a common mode choke (CMC) designed for power line filtering. It features two lines and provides 700 Ohm impedance at 100 MHz.
Electrical specifications include a maximum current rating of 5A, maximum DC resistance of 10 mOhm, and a voltage rating of 80V. Operating temperature range is -40°C to 85°C.
The component is surface mountable with a horizontal, 4 PC pad package. Dimensions are 9.00mm length, 7.00mm width, and 4.50mm maximum height.
Suitable for suppressing common mode noise in power supply lines and other applications requiring high current handling.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.41 | $1.41 |
| 10+ | $1.17 | $1.17 |
| 25+ | $1.02 | $1.02 |
| 100+ | $0.96 | $0.96 |
| 250+ | $0.89 | $0.89 |
| 500+ | $0.79 | $0.79 |
| 800+ | $0.78 | $0.78 |
| 2,400+ | $0.76 | $0.76 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
80V nominal.
Horizontal, 4 PC Pad surface mount package.
-40°C to 85°C.
RoHS3 compliant (unverified).
700 Ohm at 100 MHz.
5A.
10 mOhm maximum.
