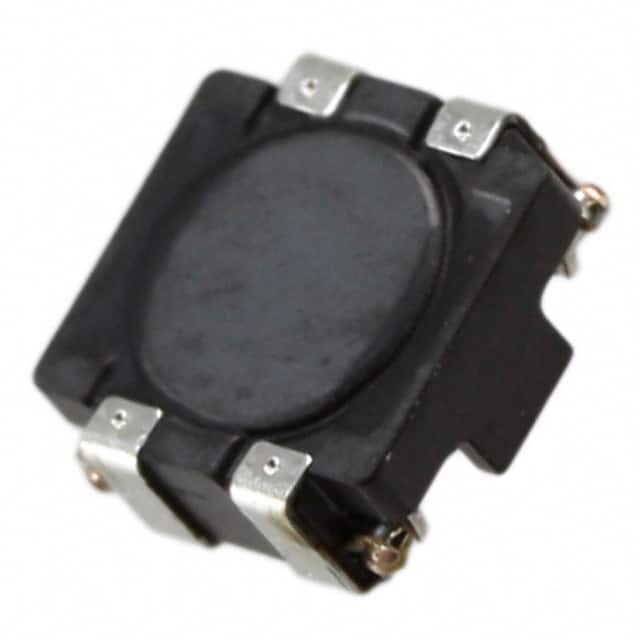

ACM4520-901-2P-T000 Common mode choke from TDK with 900Ω impedance at 100MHz, 2.3A current rating, and 50V voltage rating. Surface mount package in a horizontal 4 PC pad configuration.
Mfr Part #:

ACM4520-901-2P-T000

Available from 6 distributors
Mfr Name: TDK Corporation
TDK Corporation
Common mode choke from TDK with 900Ω impedance at 100MHz, 2.3A current rating, and 50V voltage rating. Surface mount package in a horizontal 4 PC pad configuration.
✓ Total Stock: 41,096 pcs
$ Price Range: $0.42 - $0.84

ACM4520-901-2P-T000 Available from 6 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACM4520-901-2P-T000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

ACM4520-901-2P-T000 Description

Short technical summary and product information.

This is a common mode choke (CMC) designed for power line filtering. It features two lines with an impedance of 900 Ω at 100 MHz.



Electrical ratings include a maximum current of 2.3 A, maximum DC resistance of 60 mOhm, and a voltage rating of 50 V. Operating temperature range is -40°C to 85°C.



The component is surface mounted in a horizontal, 4 PC pad package with dimensions 4.70 mm x 4.50 mm x 2.00 mm. It is listed as RoHS3 compliant and has an MSL of 1 (unlimited), though these compliance values are unverified.



Suitable for suppressing common mode noise in power supply lines and other applications requiring high impedance at high frequencies.

ACM4520-901-2P-T000 Quick Information

Product Type: Common Mode Choke
Series: ACM4520
Canonical Name: TDK ACM4520-901-2P-T000 Common Mode Choke
Subcategory: Power Line Choke

ACM4520-901-2P-T000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACM4520-901-2P-T000 Estimated Pricing

Qty Low High
1+ $0.84 $0.84
10+ $0.69 $0.69
25+ $0.60 $0.60
100+ $0.57 $0.57
250+ $0.53 $0.53
500+ $0.47 $0.47
800+ $0.43 $0.43
2,400+ $0.42 $0.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACM4520-901-2P-T000 Features

  • Two-line common mode choke for power lines.
  • 900Ω impedance at 100 MHz.
  • Rated for 2.3A maximum current.
  • Surface mount in horizontal 4 PC pad package.
  • Operating temperature range -40°C to 85°C.

ACM4520-901-2P-T000 Applications

  • Suppresses common mode noise in power supplies.
  • Used in DC-DC converter input/output filtering.
  • Ideal for automotive and industrial electronics.

ACM4520-901-2P-T000 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of this common mode choke?

900 Ω at 100 MHz.

What is the maximum current rating?

2.3 A.

What is the voltage rating?

50 V.

What is the operating temperature range?

-40°C to 85°C.

What is the package type?

Surface mount, horizontal 4 PC pad.

Is this component RoHS compliant?

It is listed as RoHS3 Compliant, but this is unverified.

What is the DC resistance?

Maximum 60 mOhm.
