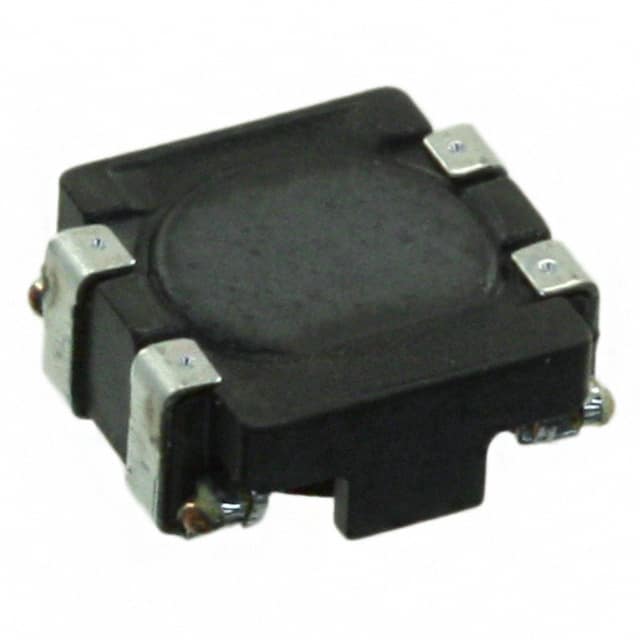

ACM4520-421-2P-T000 TDK ACM4520-421-2P-T000 is a 2-line common mode choke with 420 Ohm impedance at 100 MHz, rated for 2.8A and 50V. It is a surface mount component in a horizontal 4 PC pad package.
Mfr Part #:

ACM4520-421-2P-T000

Available from 3 distributors
Mfr Name: TDK Corporation
TDK Corporation
TDK ACM4520-421-2P-T000 is a 2-line common mode choke with 420 Ohm impedance at 100 MHz, rated for 2.8A and 50V. It is a surface mount component in a horizontal 4 PC pad package.
✓ Total Stock: 3,063 pcs
$ Price Range: $0.42 - $0.84

ACM4520-421-2P-T000 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
2,738 pcs
On Request
2738 pcs On Request 1 On Request On Request 13+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
205 pcs
On Request
205 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACM4520-421-2P-T000 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
Current Rating (Max)
DC Resistance (DCR)
DC Resistance (DCR) (Max)
Filter Type
Height (Max)
Impedance @ Frequency
Mounting Type
Number of Lines
Operating Temperature
Voltage Rating
View Similar Products (0)

ACM4520-421-2P-T000 Description

Short technical summary and product information.

The TDK ACM4520-421-2P-T000 is a common mode choke designed for power line filtering applications. It features two lines and provides a nominal impedance of 420 Ohms at 100 MHz, making it suitable for suppressing common mode noise in various electronic circuits.



This component is rated for a maximum current of 2.8A and a maximum DC resistance of 55 milliohms, ensuring efficient power handling with minimal loss. It operates over a temperature range of -40°C to 85°C, allowing use in a wide variety of environments.



The choke is surface mounted and comes in a horizontal 4 PC pad package with dimensions of 4.70mm x 4.50mm and a maximum height of 2.00mm. This compact size is ideal for space-constrained PCB designs.



With a voltage rating of 50V, this common mode choke is well suited for power line filtering in consumer electronics, industrial equipment, and other applications where common mode noise suppression is required.

ACM4520-421-2P-T000 Quick Information

Product Type: Common Mode Choke
Canonical Name: Common Mode Choke, 2 Line, 420 Ohm @ 100 MHz, 2.8A, Surface Mount
Subcategory: Common Mode Chokes

ACM4520-421-2P-T000 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACM4520-421-2P-T000 Estimated Pricing

Qty Low High
1+ $0.84 $0.84
10+ $0.69 $0.69
25+ $0.60 $0.60
100+ $0.57 $0.57
250+ $0.53 $0.53
500+ $0.49 $0.49
800+ $0.43 $0.43
2,400+ $0.42 $0.42

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACM4520-421-2P-T000 Features

  • Two-line common mode choke design.
  • 420 Ohm impedance at 100 MHz.
  • Rated for 2.8A maximum current.
  • Surface mount horizontal 4 PC pad.
  • Operates from -40°C to 85°C.

ACM4520-421-2P-T000 Applications

  • Suppresses common mode noise in power lines.
  • Ideal for DC power supply filtering.
  • Used in consumer electronics power inputs.
  • Suitable for industrial control equipment.

ACM4520-421-2P-T000 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the impedance of the ACM4520-421-2P-T000?

The impedance is 420 Ohms at 100 MHz.

What is the maximum current rating?

The maximum current rating is 2.8A.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.

What is the package type?

The package is Horizontal, 4 PC Pad, surface mount.

What is the DC resistance?

The maximum DC resistance is 55 milliohms.

What is the voltage rating?

The voltage rating is 50V.
