Mfr Part #:

ACM4002E-ML-YBS-D

Name: ACM4002E-ML-YBS-D
Brand: AZ Displays
SKU: ACM4002E-ML-YBS-D

Mfr Name: AZ Displays

Description:

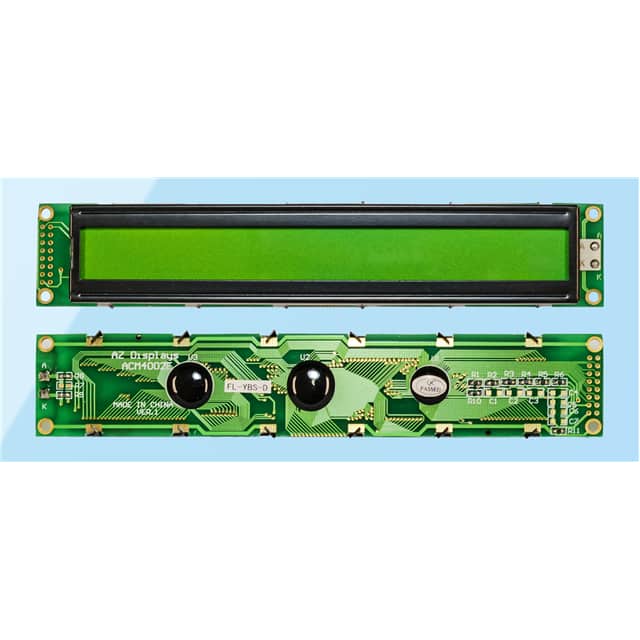

40X2 CHARACTER LCD TRANSMISSIVE

Stock on Request

ACM4002E-ML-YBS-D Description

Short technical summary and product information.

40X2 CHARACTER LCD TRANSMISSIVE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	AZ Displays
Backlight	LED
Character Format	5 x 8 Dots
Character Size	5.55mm H x 3.20mm W
Controller Type	KS0066
Display Format	20 x 4
Display Mode	Transmissive
Display Type	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size	0.60mm W x 0.65mm H
Operating Temperature	-20°C ~ 70°C
Outline L x W x H	182.00mm x 33.50mm x 14.50mm
Viewing Area	154.50mm L x 16.50mm W
Voltage	2.7V ~ 5.5V
