Mfr Part #:

ACM1601C-NLW-BBW

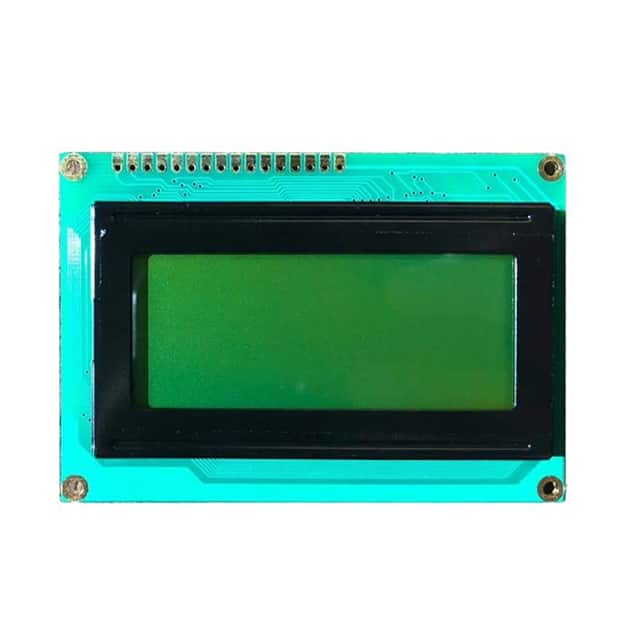

Name: ACM1601C-NLW-BBW
Brand: AZ Displays
SKU: ACM1601C-NLW-BBW

Mfr Name: AZ Displays

Description:

16X1 CHARACTER LCD TRANSMISSIVE

Stock on Request

ACM1601C-NLW-BBW Description

Short technical summary and product information.

16X1 CHARACTER LCD TRANSMISSIVE

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Display Modules - LCD, OLED Character and Numeric
Manufacturer Name	AZ Displays
Backlight	LED
Character Format	5 x 8 Dots
Character Size	6.56mm H x 3.07mm W
Controller Type	ST7066U
Display Format	16 x 1
Display Mode	Transmissive
Display Type	FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size	0.55mm W x 0.57mm H
Operating Temperature	-20°C ~ 70°C
Outline L x W x H	80.00mm x 36.00mm x 9.50mm
Viewing Area	64.50mm L x 14.00mm W
Voltage	2.7V ~ 5.5V
