ACM1513-551-2PL-TLHF
TDK Corporation

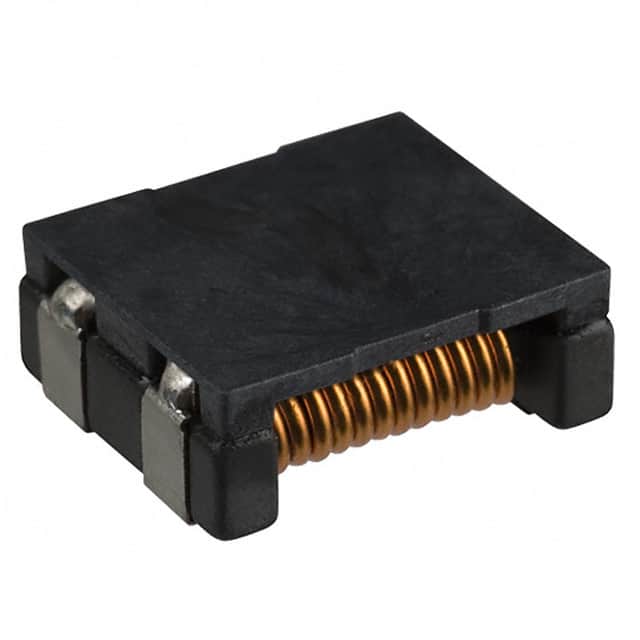

TDK ACM1513-551-2PL-TLHF is a surface mount common mode choke for power line applications. It offers 550Ω impedance at 100MHz, 10A maximum current, and 50V voltage rating.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
305 pcs
|
305 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | NO DC | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Max) | |
| DC Resistance (DCR) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Voltage Rating |
This TDK ACM1513-551-2PL-TL is a chip-type common mode filter designed for large current power line noise suppression. It provides 550 Ohm impedance at 100 MHz, effectively filtering conducted noise in power lines. Rated for 10A continuous current with a low maximum DC resistance of 4 mOhm, minimizing power loss and heat generation. The maximum voltage rating is 50V. Operating temperature range covers -40°C to 85°C, suitable for a wide range of environments.
The component is surface mount in a horizontal package with 4 PC Pad termination. Package dimensions are 15.00mm x 13.00mm x 6.00mm, offering a compact footprint for space-constrained designs. It is supplied in blister plastic taping on a 330mm reel with 500 pieces per reel.
Applications include power line noise filtering in any electronic device, particularly for adapter and battery line noise in notebook PCs, standalone word processors, and other relatively large portable equipment. The compact and lightweight design supports miniaturization requirements in portable electronics.
50V.
Horizontal, 4 PC Pad surface mount package.
-40°C to 85°C.
Yes, RoHS3 Compliant (unverified).
550 Ohm.
10A.
4 mOhm.
