| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Dimensions | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Type | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

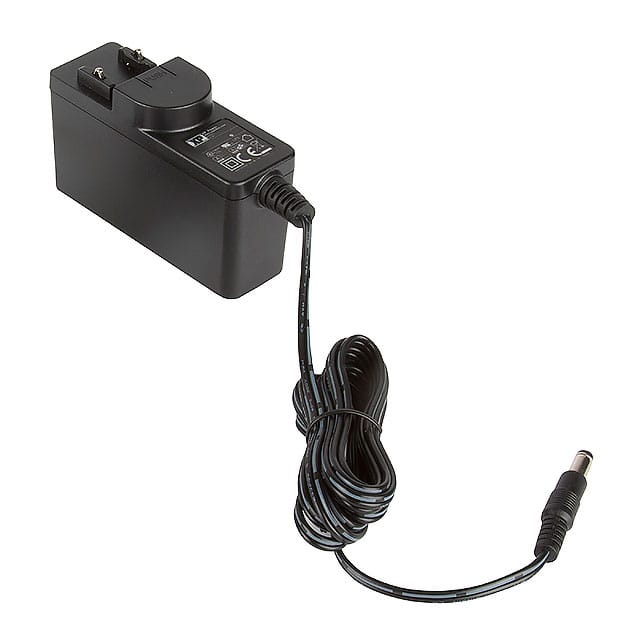

The XP Power ACM12US09 is a versatile AC-DC power supply designed for various applications, including ITE (Commercial) and Medical.
This unit delivers a 9V output at 1.33A, providing a total of 12W of power. It features a wide input voltage range of 90-264VAC and operates efficiently, complying with Energy Efficiency Level VI and European CoC Tier 2 standards. The power supply boasts high active mode efficiency and extremely low no-load power consumption, with a maximum of 75mW.
Designed for ease of integration, the ACM12US09 has a compact form factor with dimensions of 75.9mm x 30.2mm x 48.3mm. It includes a standard barrel plug output connector (2.5mm I.D. x 5.5mm O.D. x 11.0mm) and utilizes an interchangeable multi-blade input connector, which is sold separately. The unit is built with Class II construction and carries a 3-year warranty.
Key specifications include a total regulation of ±5%, an operating temperature range of -5°C to 60°C, and compliance with medical and ITE safety standards such as 60601-1 and 62368-1. It is suitable for applications requiring reliable power conversion in healthcare and industrial electronic environments.
The output voltage is 9VDC.
The maximum output current is 1.33A.
The power rating is 12W.
The input voltage range is 90VAC to 264VAC.
The operating temperature range is -5°C to 60°C.
The dimensions are 76.0 x 30.3 x 48.2mm.
Yes, it complies with Energy Efficiency Level VI and European CoC Tier 2.
