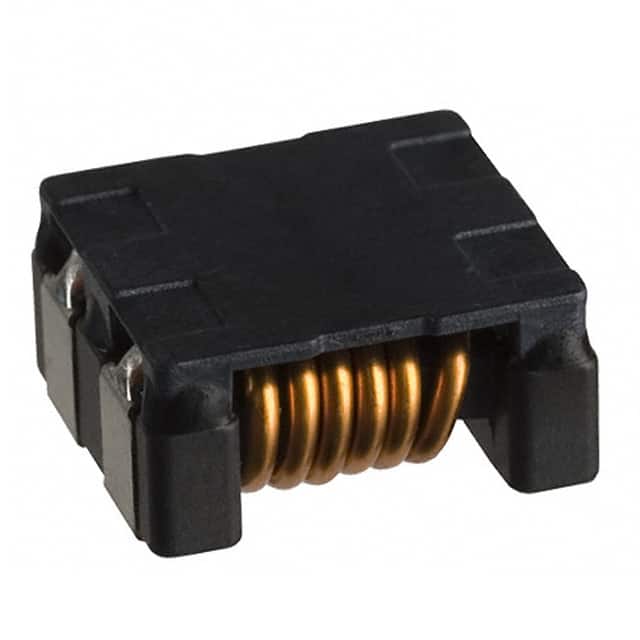

The TDK ACM1211-102-2PL-TL01 is a power line common mode choke designed for surface mount assembly. It features a 2-line configuration with a typical impedance of 1 kOhm at 100 MHz, making it suitable for common mode noise suppression in power supply circuits.
This component is rated for a maximum current of 6A and a maximum DC resistance of 14 mOhm, ensuring low power loss. The voltage rating is 80V. It operates over a temperature range of -40°C to 85°C.
The choke is housed in a horizontal, 4 PC pad package with dimensions of 12.00mm x 11.00mm and a maximum height of 6.00mm. It is designed for automated surface mount assembly.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.67 | $1.67 |
| 10+ | $1.37 | $1.37 |
| 25+ | $1.20 | $1.20 |
| 100+ | $1.13 | $1.13 |
| 250+ | $1.05 | $1.05 |
| 500+ | $0.97 | $0.97 |
| 1,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum current rating is 6A.
The typical impedance is 1 kOhm at 100 MHz.
The operating temperature range is -40°C to 85°C.
The package is Horizontal, 4 PC Pad, surface mount.
RoHS3 compliant per unverified data.
