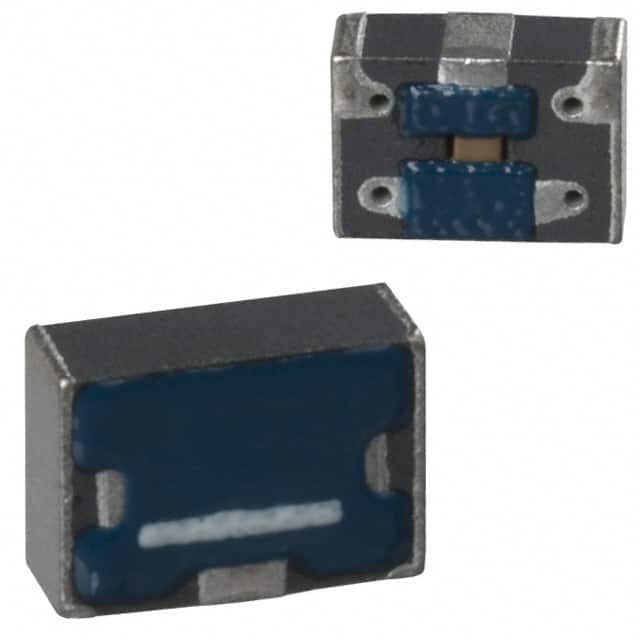

The ACH4518-103-TD01 from TDK Corporation is a 3-terminal LC (T-Type) low-pass EMI filter intended for power line filtering. It combines ferrite beads and chip capacitors in a T-type topology to attenuate conducted noise. The filter provides 25dB attenuation in the 15MHz to 75MHz range while handling up to 2A of current with a DC resistance of 0.06 ohm.
Designed for high-current applications, the filter operates over the full -40°C to +125°C temperature range. It supports a single channel and is rated at 50V, making it suitable for general-purpose power line filtering. The 3rd-order filter structure provides steeper roll-off than simple capacitive filters.
The component is supplied in a surface-mount 1812 (4532 Metric) package with a 3-pad termination, and is available in tape and reel packaging with a standard quantity of 2000 pieces per reel. It is designed for reflow soldering and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.46 | $1.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50V.
Surface mount 1812 (4532 Metric) with a 3 PC Pad.
-40°C to +125°C.
Yes, it is listed as RoHS3 Compliant; the datasheet confirms conformity to the RoHS Directive.
A low-pass LC (T-Type) filter, 3rd order, single channel.
25dB attenuation over the 15MHz to 75MHz range.
2A.
