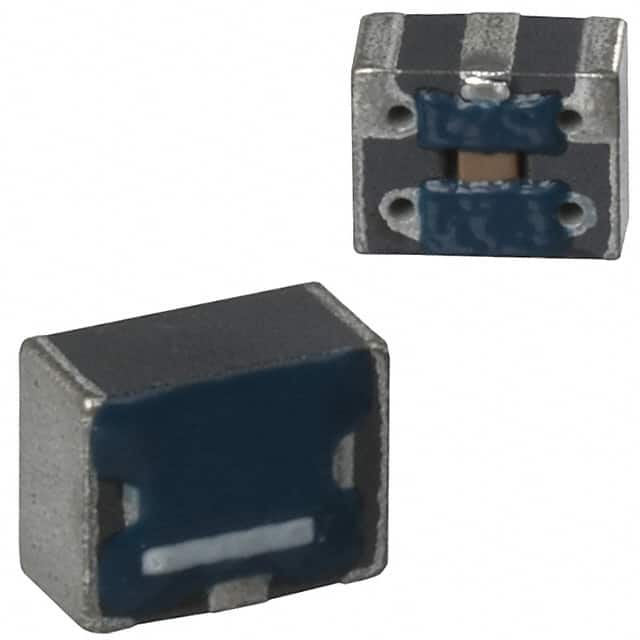

ACH3218-103-TD01 ACH3218-103-TD01 is a 3rd order low pass LC (T-Type) EMI/RFI filter by TDK Corporation, rated 20V and 1.5A max with 0.06 Ohm channel resistance.
Mfr Part #:

ACH3218-103-TD01

Available from 2 distributors
Mfr Name: TDK Corporation
TDK Corporation
ACH3218-103-TD01 is a 3rd order low pass LC (T-Type) EMI/RFI filter by TDK Corporation, rated 20V and 1.5A max with 0.06 Ohm channel resistance.
✓ Total Stock: 8,694 pcs
$ Price Range: $0.25 - $0.45

ACH3218-103-TD01 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request 21+ On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
694 pcs
On Request
694 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACH3218-103-TD01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Attenuation Value
Current
ESD Protection
Filter Order
Halogen Free
Height
Mounting Type
Number of Channels
Operating Temperature
Resistance
SVHC Present
Technology
Type
Voltage
View Similar Products (0)

ACH3218-103-TD01 Description

Short technical summary and product information.

The ACH3218-103-TD01 from TDK Corporation is a 3rd order low pass LC (T-Type) filter designed for general purpose EMI/RFI filtering applications.



This single-channel filter provides 25dB attenuation across the 17MHz to 60MHz frequency range. It is rated for a maximum voltage of 20V and a maximum current of 1.5A, with a low channel resistance of 0.06 Ohm.



The filter is housed in a compact 1210 (3225 Metric) surface mount package with 3 PC pad configuration, measuring 1.80mm x 3.20mm with a maximum height of 2.75mm. It operates over a temperature range of -40°C to 125°C and does not include integrated ESD protection.

ACH3218-103-TD01 Quick Information

Product Type: EMI/RFI Filter (LC, RC Networks)
Series: ACH3218
Canonical Name: ACH3218-103-TD01 Low Pass LC (T-Type) EMI/RFI Filter
Subcategory: LC (T-Type)

ACH3218-103-TD01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: No

ACH3218-103-TD01 Estimated Pricing

Qty Low High
1+ $0.45 $0.45
1,000+ $0.25 $0.25

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACH3218-103-TD01 Features

  • 3rd order low pass LC filter.
  • Rated for 20V and 1.5A max.
  • Low 0.06 Ohm channel resistance.
  • 25dB attenuation from 17 to 60MHz.
  • Surface mount 1210 package.

ACH3218-103-TD01 Applications

  • General purpose EMI/RFI noise suppression.
  • Filtering in low voltage DC lines.
  • Signal line filtering in portable electronics.
  • EMI filtering in automotive and industrial controls.

ACH3218-103-TD01 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the attenuation range of the ACH3218-103-TD01?

25dB attenuation across 17MHz to 60MHz.

What is the maximum rated current?

1.5 A.

Does the filter include ESD protection?

No, it does not include ESD protection.

What is the operating temperature range?

-40°C to 125°C.

What is the package type?

1210 (3225 Metric), 3 PC Pad surface mount package.
