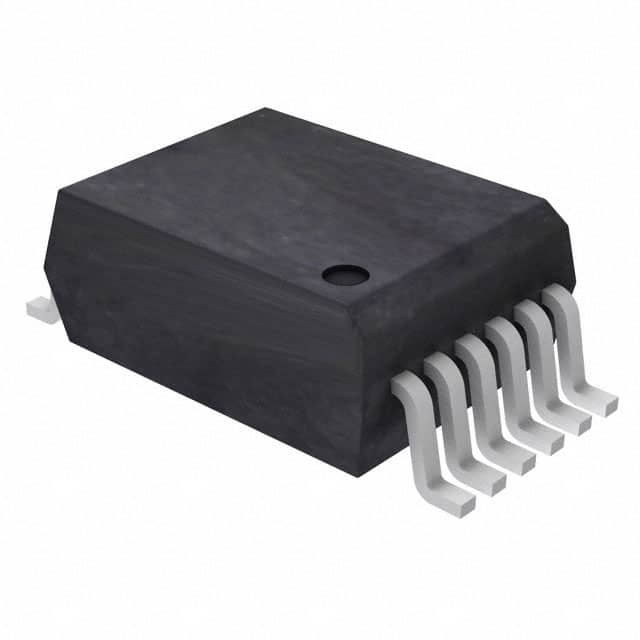

ACFL-6212T-560E The Broadcom Limited ACFL-6212T-560E is a 2-channel optoisolator with logic output, offering 5000Vrms isolation. It is designed for surface mounting in a 12-SO package.
Mfr Part #:

ACFL-6212T-560E

Available from 1 distributors
Mfr Name: Broadcom Limited
Broadcom Limited
The Broadcom Limited ACFL-6212T-560E is a 2-channel optoisolator with logic output, offering 5000Vrms isolation. It is designed for surface mounting in a 12-SO package.
✓ Total Stock: 3,000 pcs
$ Price Range: $0.50

ACFL-6212T-560E Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Flip Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ACFL-6212T-560E Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Common Mode Transient Immunity (Min)
Current
Data Rate
Failure Rate
Forward Current
Forward Voltage
Input Type
Inputs
Lead Spacing
Mounting Type
Number of Channels
Operating Temperature
Output Current
Output Type
Propagation Delay
Propagation Delay tpLH
Rise
Storage Temperature
Supplier Device Package
Supply Voltage
Tape & Reel
Voltage
View Similar Products (0)

ACFL-6212T-560E Description

Short technical summary and product information.

The ACFL-6212T-560E from Broadcom Limited is a high-performance optoisolator designed for logic output applications. It provides robust isolation of 5000Vrms, ensuring signal integrity and system protection.



This device features a data rate of 15MBd and a push-pull, totem pole output type. It operates with a supply voltage range of 3V to 5.5V and has a typical forward voltage of 1.5V. The propagation delay is a maximum of 100ns, with rise and fall times of 10ns.



Designed for surface mounting, the ACFL-6212T-560E comes in a 12-BSOP package with a width of 7.50mm. It operates within a temperature range of -40°C to 125°C. The series is noted as Automotive, AEC-Q100, R²Coupler™.



Key electrical characteristics include 2 channels, DC input type, and a common mode transient immunity of 25kV/µs. The output current is 10mA, with a maximum forward current of 20mA.

ACFL-6212T-560E Quick Information

Product Type: Optoisolator - Logic Output
Series: Automotive, AEC-Q100, R²Coupler™
Canonical Name: ACFL-6212T-560E Optoisolator - Logic Output
Subcategory: Logic Output

ACFL-6212T-560E Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACFL-6212T-560E Estimated Pricing

Qty Low High
1+ $0.50 $0.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

ACFL-6212T-560E Features

  • 2-channel optoisolator with logic output.
  • 5000Vrms isolation voltage rating.
  • 15MBd maximum data transfer rate.
  • Push-pull, totem pole output type.
  • Surface mount 12-BSOP package.

ACFL-6212T-560E Applications

  • Ideal for high-voltage isolation needs.
  • Suitable for digital signal transmission.
  • Used in automotive control systems.
  • Provides robust noise immunity.

ACFL-6212T-560E FAQs

5 frequently asked questions generated from this part’s specifications.
What is the isolation voltage of the ACFL-6212T-560E?

The ACFL-6212T-560E offers an isolation voltage of 5000Vrms.

What is the operating temperature range for this optoisolator?

The operating temperature range for the ACFL-6212T-560E is -40°C to 125°C.

What package type is the ACFL-6212T-560E supplied in?

The ACFL-6212T-560E is supplied in a 12-BSOP package with a width of 7.50mm.

What is the data rate of the ACFL-6212T-560E?

The data rate for the ACFL-6212T-560E is 15MBd.

What is the output type of the ACFL-6212T-560E?

The ACFL-6212T-560E features a Push-Pull, Totem Pole output type.
