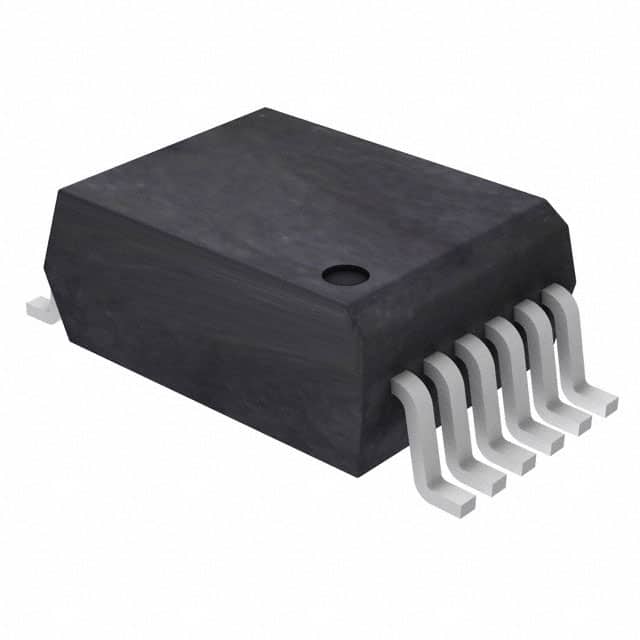

The ACFL-5212T-060E from Broadcom Limited is a high-performance optoisolator designed for applications requiring robust electrical isolation. This component features two channels with transistor outputs, providing a reliable interface between different voltage domains.
Key electrical specifications include an isolation voltage of 5000Vrms, ensuring safety and signal integrity in demanding environments. The current transfer ratio ranges from a minimum of 32% at 10mA to a maximum of 100% at 10mA. It supports DC input and has an output voltage capability of up to 20V with a maximum output current of 8mA per channel. The typical forward voltage is 1.5V, and the maximum DC forward current is 20 mA.
Designed for versatility, the ACFL-5212T-060E operates across a wide temperature range from -40°C to 125°C. It is available in a surface mount package, specifically the 12-BSOP (0.295", 7.50mm Width), facilitating integration into compact PCB designs. The typical turn-on and turn-off times are 20μs, contributing to efficient signal processing.
This optoisolator is suitable for various industrial and electronic applications where signal isolation is critical, such as power supply control, motor drives, and communication interfaces. Its construction and specifications make it a dependable choice for designers seeking to enhance system reliability and safety.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The isolation voltage is 5000Vrms.
It has 2 channels.
The operating temperature range is -40°C to 125°C.
It features a transistor output.
It is a surface mount 12-BSOP (0.295", 7.50mm Width) package.
