| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
903 pcs
|
903 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
788 pcs
|
788 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Attenuation Value | |
| Current | |
| ESD Protection | |
| Filter Order | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Resistance | |
| Tape & Reel | |
| Technology | |
| Type | |
| Voltage | |
| Width |

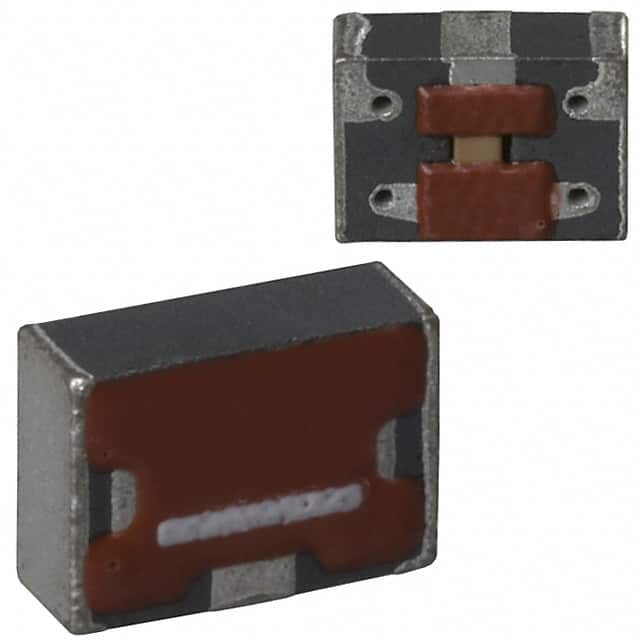

TDK ACF451832-153-TD01 is a 3rd order low pass LC (T-type) EMI filter designed for signal line filtering in electronic devices. It features a single channel with a nominal attenuation of 25dB across the 11MHz to 70MHz frequency range, making it suitable for suppressing high-frequency noise on data lines. The filter is rated for a maximum current of 300mA and a working voltage of 50V, with a DC resistance of 0.15 ohms. This surface mount component is packaged in a 1812 (4532 Metric) case with three terminals, measuring 4.50mm x 3.20mm x 2.00mm. It operates over a temperature range of -25°C to +85°C and is RoHS compliant. The ACF series is ideal for high-density circuit design, offering stable attenuation characteristics when used with a grounded circuit. Typical applications include data lines in mobile devices and other portable electronics where signal integrity is critical.
The operating voltage rating is 50V.
It comes in a 1812 (4532 Metric) surface mount package with 3 terminals.
It operates from -25°C to +85°C.
Yes, it is RoHS3 compliant according to the datasheet.
It provides 25dB typical attenuation from 11MHz to 70MHz.
The maximum current rating is 300mA.
