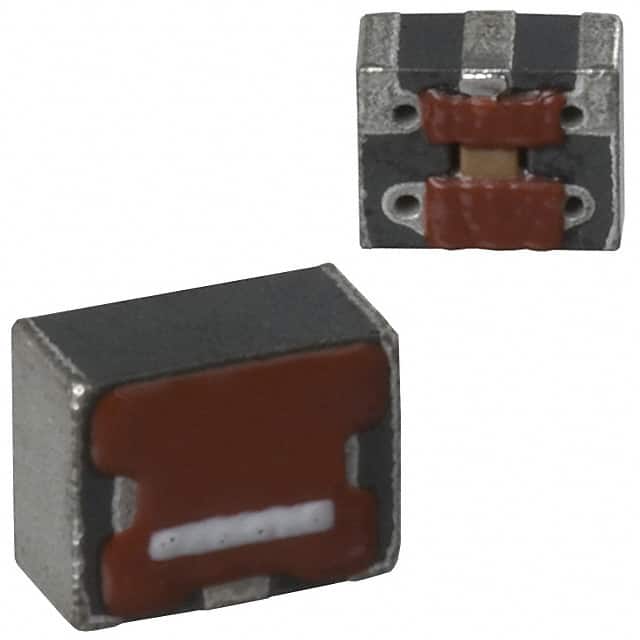

The TDK Corporation ACF321825-331-TD01 is a 3rd order LC (T-Type) low pass EMI filter designed for signal line applications in data lines for mobile devices. This surface mount filter provides 25dB typical attenuation across the 130MHz to 210MHz frequency range, effectively suppressing high-frequency noise.
Rated for 20V DC and 300mA continuous current, the filter features a low DC resistance of 0.15 ohms typical. Its T-Type LC topology with ferrite shielding offers stable attenuation characteristics when used on a ground plane. The part is RoHS compliant and suitable for reflow soldering.
The filter is packaged in a compact 1210 (3225 Metric) case measuring 3.20mm x 2.50mm x 2.00mm with a 3 PC pad termination style. Standard packaging is tape and reel with 1000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.42 | $0.42 |
| 10+ | $0.34 | $0.34 |
| 30+ | $0.31 | $0.31 |
| 100+ | $0.26 | $0.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The rated voltage is 20V DC.
It uses a 1210 (3225 Metric) surface mount package with 3 PC pad termination.
The operating and storage temperature range is -25°C to +85°C.
Yes, it conforms to the RoHS Directive 2002/95/EC as stated in the datasheet.
It provides 25dB typical attenuation in the frequency range of 130MHz to 210MHz.
The rated current is 300 mA DC.
