| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Number of Poles | |
| Voltage Rating |

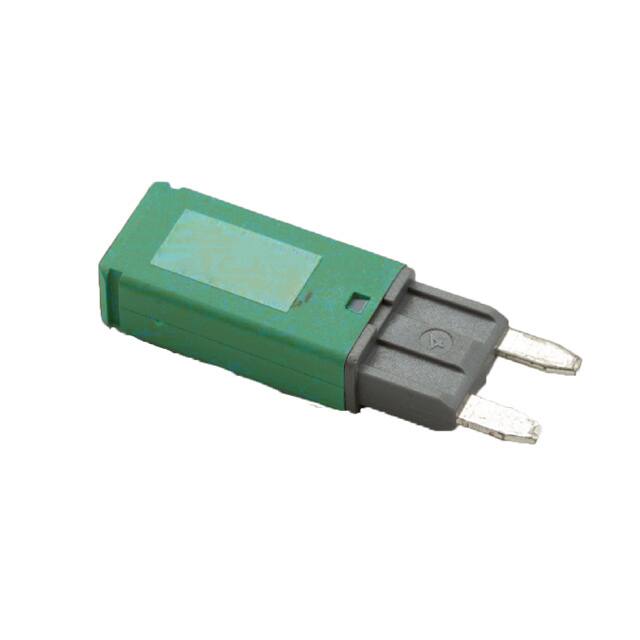

This OptiFuse ACBP4-PML-30A is an auto-reset miniature blade circuit breaker designed for 14VDC systems. It offers a 30A current rating and an interrupt capacity of 450A at 14VDC. The circuit breaker operates within a temperature range of -40°C to 85°C.
The body is constructed from UL-rated 94V-0 thermoplastic, and the terminals are made of tin-plated copper alloy. It is a single-pole device with automatic reset functionality. The circuit breaker adheres to SAE J553 Type I testing standards.
This component is suitable for applications requiring reliable overcurrent protection with automatic reset capabilities. Its compact size and robust construction make it a versatile choice for various automotive and industrial systems.
30A.
14VDC.
450A at 14VDC.
Yes, it has an auto reset mechanism.
-40°C to 85°C.
Thermoplastic with UL 94V-0 rating.
Tin plated copper alloy.
