ACBP-V-40A
OptiFuse
The OptiFuse ACBP-V-40A is a 40A, 32VDC circuit breaker with an automatic reset function. It is designed for chassis mounting.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

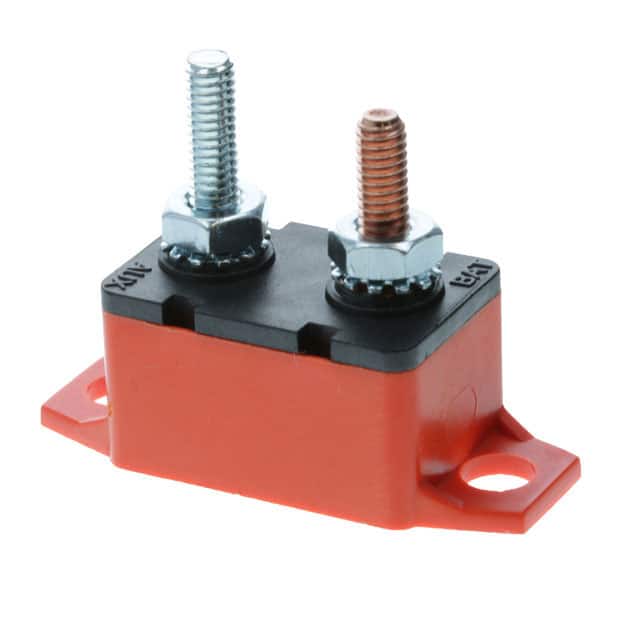

The OptiFuse ACBP-V-40C is a single-pole, auto-reset circuit breaker rated for 40A and 32VDC. It features a thermoplastic UL94V-0 body and copper-plated battery terminals with zinc-plated auxiliary terminals.
Designed for chassis mounting, this circuit breaker meets SAE J1171 for ignition protection and has an IP63 ingress protection rating. The operating temperature range is from -10°C to 60°C. The breaker also adheres to SAE J553 testing standards.
Key electrical specifications include an interrupting rating of 4 times the rated current. The mounting torque is specified at 1.0±0.1 N.m, and stud torque at 3.0±0.3 N.m. The breaker is designed with an automatic reset function, making it suitable for applications requiring reliable circuit protection.
32 VDC
-10°C to 60°C
Chassis mount
40A
4 times rated current (160A)
Yes, it is auto reset (Type I).
It meets SAE J1171 ignition protection, IP63 ingress protection, and is tested per SAE J553.
