ACBP-N-20C
OptiFuse
The OptiFuse ACBP-N-20C is a 1-pole, 20A, 32VDC auto-reset circuit breaker designed for chassis mounting. It offers SAE J1171 ignition protection and IP63 ingress protection.
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

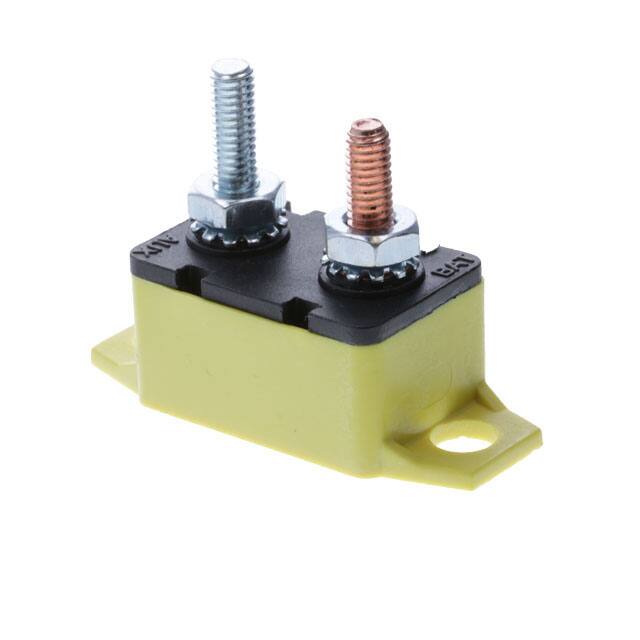

The OptiFuse ACBP-V-20C is a 1-pole circuit breaker designed for reliable circuit protection. It offers a current rating of 20A and a voltage rating of 32VDC, suitable for various DC applications.
This circuit breaker features an automatic reset type, allowing it to restore power after a fault condition is cleared. It is designed for chassis mounting, providing a secure and stable installation in control panels and equipment.
The ACBP-V-20C is built with a thermoplastic body (UL94V-0) and features copper-plated battery terminals and zinc-plated auxiliary terminals for durability. It meets ignition protection standards (SAE J1171) and has an ingress protection rating of IP63.
Key specifications include an interrupting rating of 4 times the rated current and an operating temperature range of -10°C to 60°C. Testing is performed according to SAE J553 standards.
The voltage rating is 32 VDC.
The current rating is 20A.
It features an automatic reset type.
It is designed for chassis mounting.
The operating temperature range is -10°C to 60°C.
Yes, it meets SAE J1171 ignition protection standards.
The ingress protection rating is IP63.
