| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

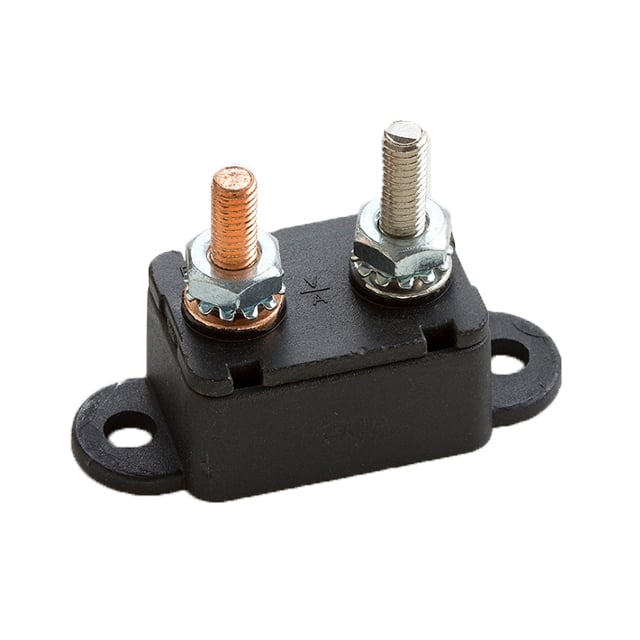

The OptiFuse ACBP-12-V-5A is an automotive circuit breaker designed for reliable protection in 12VDC systems. It features a current rating of 5A and an automatic reset mechanism, allowing it to recover after tripping due to overcurrent conditions.
This circuit breaker is built with a thermoplastic body (UL94V-0) and offers a limited short circuit current rating of 1000A (UL1077). It operates within a temperature range of -10°C to 60°C. The mounting type is chassis mount, making it suitable for integration into various automotive and industrial enclosures.
Key electrical specifications include a dielectric strength of AC 1500V for 1 minute and an insulation resistance of 100MΩ at DC 500V for 5 seconds. The breaker is designed for single-pole applications.
Environmental compliance includes RoHS3 compliance, MSL 1, and REACH unaffected status, though these are based on available database information and may require verification.
12V DC.
5A.
1 pole.
Chassis Mount.
-10°C to 60°C.
1000A (UL1077).
Thermoplastic (UL94V-0).
