| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Body Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

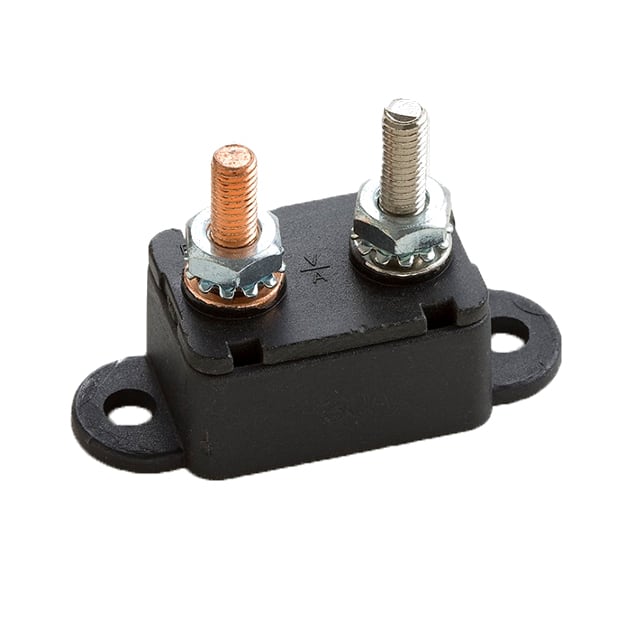

The OptiFuse ACBP-12-V-35A is an automotive circuit breaker designed for reliable circuit protection. It features a 35A current rating and operates at 12V.
This circuit breaker utilizes an automatic reset mechanism, allowing it to restore power after a fault condition is cleared. It is designed for chassis mounting, providing a secure and stable installation in automotive applications. The breaker is constructed with a thermoplastic (UL94V-0) body and copper/zinc plated terminals for durability.
Key electrical specifications include a limited short circuit current rating of 1000A (UL1077), insulation resistance of 100M ohm at 500V DC, and dielectric strength of 1500V AC for one minute. The operating temperature range is from -10°C to 60°C.
This component is suitable for various automotive protection needs where a resettable circuit breaker is required. Its robust construction and adherence to standards like SAEJ553 ensure performance in demanding environments.
The operating temperature range is -10°C to 60°C.
The current rating is 35A.
The voltage rating is 12V.
It uses an automatic reset actuator.
It has 1 pole.
It is chassis mount.
It is approved to SAEJ553.
