| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Storage Temperature | |
| Type | |
| Voltage | |
| Voltage Rating |

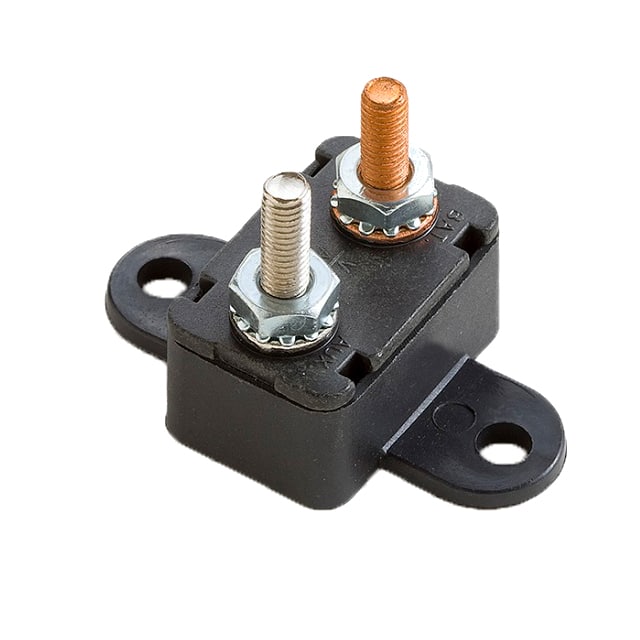

The OptiFuse ACBP-12-H-35A is an automotive-type, auto-reset circuit breaker with a horizontal bracket for mounting. It is designed to protect electrical circuits in 12V systems, handling a current rating of 35A.
Key specifications include an IP63 rating for environmental protection and conformance to the American National Standard SAE J553. The operating temperature range is -10°F to 150°F, and storage temperature ranges from -20°F to 200°F. The breaker is constructed with a PBT cover material.
This circuit breaker is intended for occasional overcurrent protection. It features specific trip times at various current percentages: at 100% of rating, it opens in over 30 minutes; at 135% of rating, it opens in under 30 minutes; and at 200% of rating, it opens in under 1 minute. The terminals are copper plated for the battery connection and zinc plated for the auxiliary connection.
The current rating is 35A.
The operating voltage is 12V.
It is an auto reset circuit breaker.
It conforms to American National Standard SAE J553.
The IP rating is IP63.
The operating temperature range is -10°F to 150°F.
