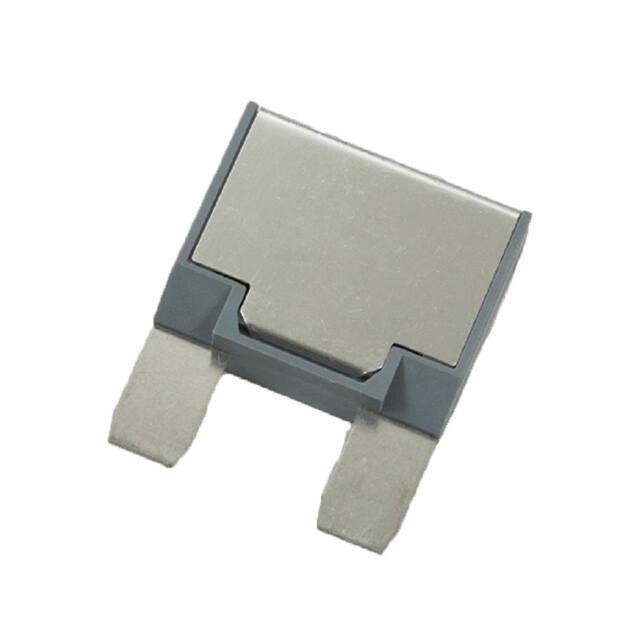

ACBM-PX-10A The OptiFuse ACBM-PX-10A is a Maxi Blade Circuit Breaker with a 10A current rating and 14VDC voltage rating. It features an automatic reset function.
Mfr Part #:

ACBM-PX-10A

Mfr Name: OptiFuse
OptiFuse
The OptiFuse ACBM-PX-10A is a Maxi Blade Circuit Breaker with a 10A current rating and 14VDC voltage rating. It features an automatic reset function.
Stock on Request

ACBM-PX-10A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Body Material
Current Rating
Current Rating (Amps)
Illumination
Number of Poles
Voltage Rating
View Similar Products (0)

ACBM-PX-10A Description

Short technical summary and product information.

This OptiFuse ACBM-PX-10A is a Maxi Blade Circuit Breaker designed for reliable circuit protection. It operates at a voltage rating of 14VDC and has a current rating of 10A.



The circuit breaker features an automatic reset type, allowing it to restore functionality after tripping. The body is constructed from grey thermoplastic with a UL94V-0 rating, and the terminals are made of tin-plated brass.



With an interrupt rating of 150A at 14VDC, this single-pole breaker is suitable for various automotive and industrial applications requiring robust protection. It operates within a temperature range of -40°C to 85°C.

ACBM-PX-10A Quick Information

Product Type: Circuit Breaker
Canonical Name: OptiFuse ACBM-PX-10A Maxi Blade Circuit Breaker
Subcategory: Maxi Blade

ACBM-PX-10A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACBM-PX-10A Features

  • 10A current rating for circuit protection.
  • 14VDC voltage rating for DC applications.
  • Automatic reset for continuous operation.
  • 150A interrupt rating at 14VDC.
  • Durable thermoplastic body construction.

ACBM-PX-10A Applications

  • Ideal for automotive electrical systems.
  • Suitable for industrial control panels.
  • Used in DC power distribution.
  • Provides overcurrent protection.

ACBM-PX-10A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the ACBM-PX-10A?

10 A.

What is the voltage rating of the ACBM-PX-10A?

14 VDC.

What is the interrupt rating of the ACBM-PX-10A?

150 A at 14 VDC.

What type of reset does the ACBM-PX-10A have?

Auto reset.

What is the operating temperature range of the ACBM-PX-10A?

-40°C to 85°C.

What approvals does the ACBM-PX-10A have?

SAEJ553 and UL.

What is the package or footprint of the ACBM-PX-10A?

Maxi fuse footprint, Type I.
