| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Automotive Grade | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature | |
| Voltage Rating |

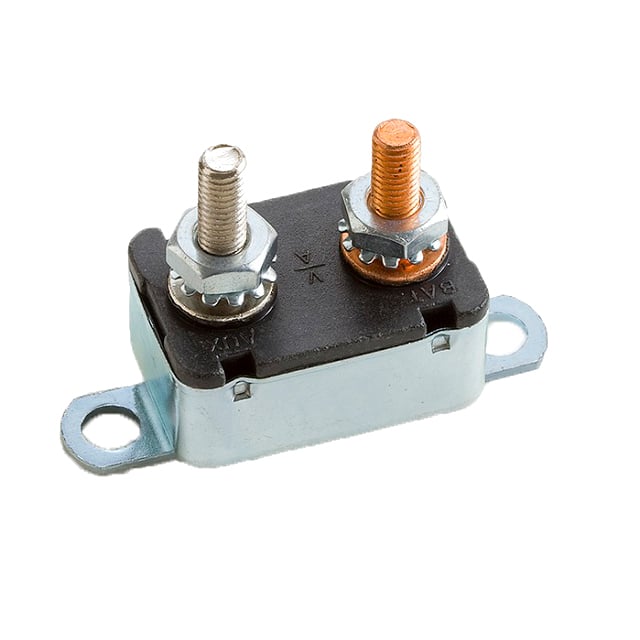

This OptiFuse ACB-24-V-15A is an automotive circuit breaker designed for reliable protection in vehicle electrical systems. It operates at a voltage rating of 24VDC and a current rating of 15A, featuring an automatic reset type for convenience.
The circuit breaker meets SAE J553 standards, indicating its suitability for automotive applications. It is designed to function within an operating temperature range of -40°F to 175°F, ensuring performance in various environmental conditions. The unit has a single pole configuration and an illumination type of None.
Mounting is facilitated by a bracket attached crosswise the case, and the terminals are #10-32 studs. The body material is specified as Copper for the battery terminal and Zinc Plated Steel for the auxiliary terminal. This circuit breaker is suitable for applications requiring robust overcurrent protection in automotive environments.
Compliance information includes RoHS3 compliance, MSL 1, and REACH unaffected status. While these are listed, they are based on existing database information and may require verification.
The current rating is 15A.
The voltage rating is 24 VDC.
It features an automatic reset type.
It operates from -40°F to 175°F.
It complies with SAE J553.
It is mounted with a bracket attached crosswise the case.
It uses #10-32 Stud terminals.
