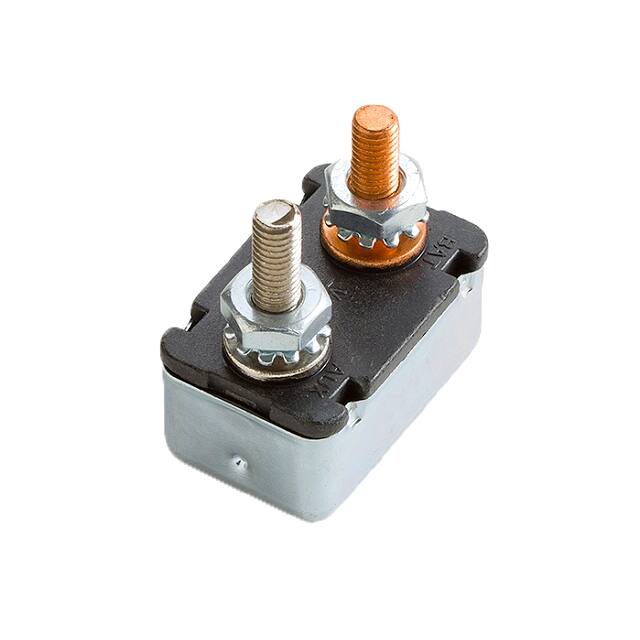

ACB-24-N-10A The OptiFuse ACB-24-N-10A is an automotive circuit breaker with a 10A current rating and 24VDC voltage. It features an automatic reset function.
Mfr Part #:

ACB-24-N-10A

Mfr Name: OptiFuse
OptiFuse
The OptiFuse ACB-24-N-10A is an automotive circuit breaker with a 10A current rating and 24VDC voltage. It features an automatic reset function.
Stock on Request

ACB-24-N-10A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Approval Agency
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Operating Temperature
Terminal Type
Voltage Rating
View Similar Products (0)

ACB-24-N-10A Description

Short technical summary and product information.

This OptiFuse ACB-24-N-10A is an automotive circuit breaker designed for reliable circuit protection. It operates at 24VDC and has a current rating of 10A.



The circuit breaker features an automatic reset type, meaning it will automatically reset after tripping due to an overcurrent condition. It is compliant with SAE J553 standards, indicating its suitability for automotive applications.



With a stud mount type and #10-32 stud terminals made of copper and zinc-plated steel, this breaker is designed for secure and robust connections. The operating temperature range is from -40°F to 175°F, making it suitable for various environmental conditions.



The body material is specified, and the terminals are configured for stud mounting, ensuring ease of installation in automotive systems.

ACB-24-N-10A Quick Information

Product Type: Circuit Breaker
Canonical Name: OptiFuse ACB-24-N-10A Automotive Circuit Breaker
Subcategory: Circuit Breakers

ACB-24-N-10A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ACB-24-N-10A Features

  • 10 Amp current rating for circuit protection.
  • 24 VDC operating voltage.
  • Automatic reset type for convenience.
  • SAE J553 compliance for automotive use.
  • Stud mount with #10-32 terminals.

ACB-24-N-10A Applications

  • Protects automotive electrical systems.
  • Suitable for 24VDC vehicle applications.
  • Used in engine control modules.
  • Ideal for accessory circuits.

ACB-24-N-10A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the ACB-24-N-10A?

The voltage rating is 24 VDC.

What is the current rating of this circuit breaker?

The current rating is 10A.

What type of reset does this breaker use?

It uses an automatic reset (Type I auto reset).

What is the operating temperature range?

The operating temperature range is -40°F to 175°F.

What mounting type does this breaker have?

It has a stud mount.

What terminal type does the ACB-24-N-10A use?

It uses #10-32 stud terminals.

Is this circuit breaker SAE J553 approved?

Yes, it is approved to SAE J553.
