| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Applications | |
| Bandwidth | |
| Dimensions | |
| Efficiency | |
| Frequency | |
| Frequency (Center | |
| Frequency Group | |
| Frequency Range | |
| Gain | |
| Height (Max) | |
| Impedance | |
| Mounting Type | |
| Number of Bands | |
| Operating Temperature Range | |
| Polarization | |
| RF Family | |
| Storage Temperature | |
| Tape & Reel | |
| Termination | |
| VSWR |

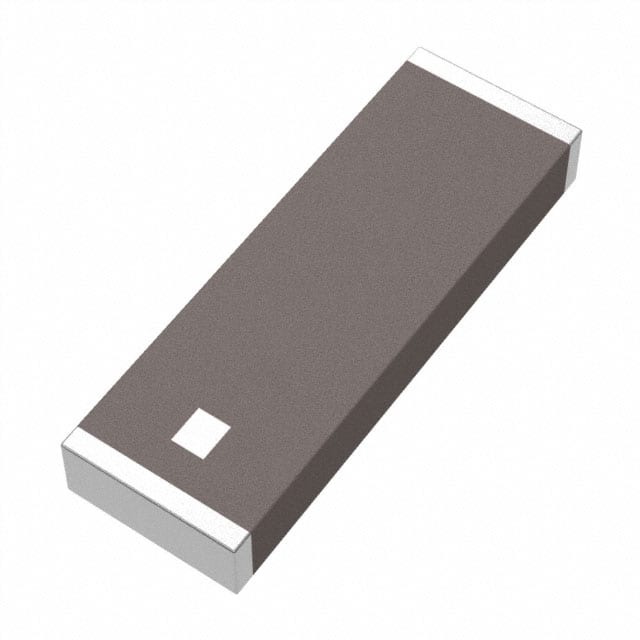

This 868 MHz ceramic chip antenna from Abracon LLC, model ACAG1204-868-T, is constructed using Low Temperature Co-Fired Ceramic (LTCC) technology. It operates within a frequency range of 858MHz to 878MHz, with a nominal center frequency of 868MHz. The antenna offers a typical bandwidth of 20MHz and a peak gain of 2.63 dBi, with an omni-directional radiation pattern and linear polarization.
Designed for surface mounting with solder termination, this chip antenna has dimensions of 12.0 x 4.0 x 1.6mm. It is suitable for applications such as ISM, LoRa, and Sigfox. The operating temperature range is -40°C to +85°C. The antenna is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
Key electrical specifications include a VSWR of ≤2.0 and an impedance of 50Ω. The efficiency at 868 MHz is 52%. The antenna is supplied on a reel with 3000 pieces per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 868MHz.
The typical bandwidth is 20MHz.
The impedance is 50Ω.
-40°C to +85°C.
It has a surface mount (SMD) package.
The dimensions are 12.0 x 4.0 x 1.6mm.
It is RoHS3 compliant.
