Mfr Part #:

AC220S05DC-20WH2

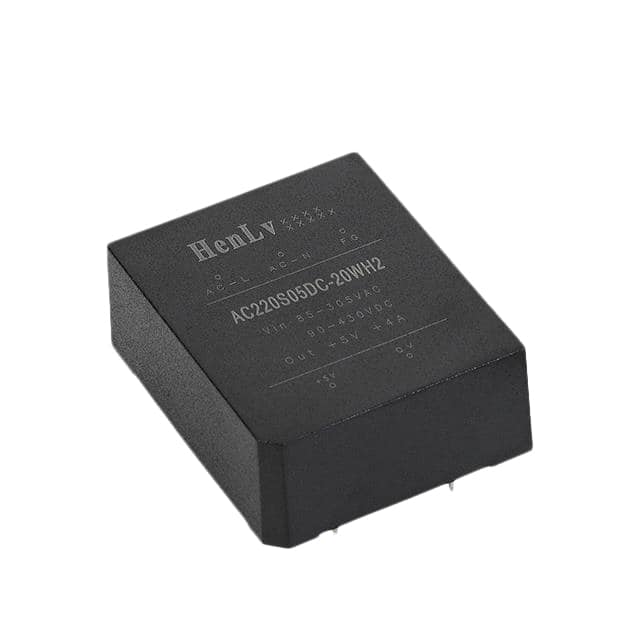

The HenLv Power AC220S05DC-20WH2 is an AC DC converter with a wide input voltage range and 4A output current. It features 77% efficiency and compact dimensions.

Stock on Request

AC220S05DC-20WH2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	AC DC Converters
Manufacturer Name	HenLv Power
Current	4A
Efficiency	77%
Height	22.0mm (0.87")
Length	55.0mm (2.17")
Voltage	85 ~ 305 VAC, 120 ~ 430 VDC
Width	45.0mm (1.77")

View Similar Products (0)

AC220S05DC-20WH2 Description

Short technical summary and product information.

This AC DC converter from HenLv Power, part number AC220S05DC-20WH2, is designed for versatile power supply applications. It accepts a broad input voltage range of 85 to 305 VAC or 120 to 430 VDC, making it suitable for various global power grids.

The converter delivers an output current of 4A and boasts an efficiency of 77%. Its physical dimensions are 55.0mm in length, 45.0mm in width, and 22.0mm in height, facilitating integration into space-constrained designs.

Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status, though these are unverified. The part is identified by DK Part Number 3986-AC220S05DC-20WH2-ND.

AC220S05DC-20WH2 Quick Information

Product Type: AC DC Converter

Canonical Name: AC DC Converter

AC220S05DC-20WH2 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

AC220S05DC-20WH2 Features

Wide input voltage range 85-305 VAC.
Delivers 4A output current at 5V.
77% typical efficiency rating.
Compact 55.0 x 45.0 x 22.0 mm size.
RoHS3 compliant with MSL 1 rating.

AC220S05DC-20WH2 Applications

Suitable for board mount power supplies.
Ideal for global voltage applications.
Used in compact electronic devices.

AC220S05DC-20WH2 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range for the AC220S05DC-20WH2?

The input voltage range is 85 to 305 VAC or 120 to 430 VDC.

What is the output current of the AC220S05DC-20WH2?

The output current is 4A.

What is the efficiency of the AC220S05DC-20WH2?

The efficiency is 77%.

What are the dimensions of the AC220S05DC-20WH2?

The dimensions are 55.0mm in length, 45.0mm in width, and 22.0mm in height.

What is the RoHS status of the AC220S05DC-20WH2?

The RoHS status is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level is 1 Unlimited.

Is the AC220S05DC-20WH2 REACH unaffected?

Yes, the REACH status is REACH Unaffected.
