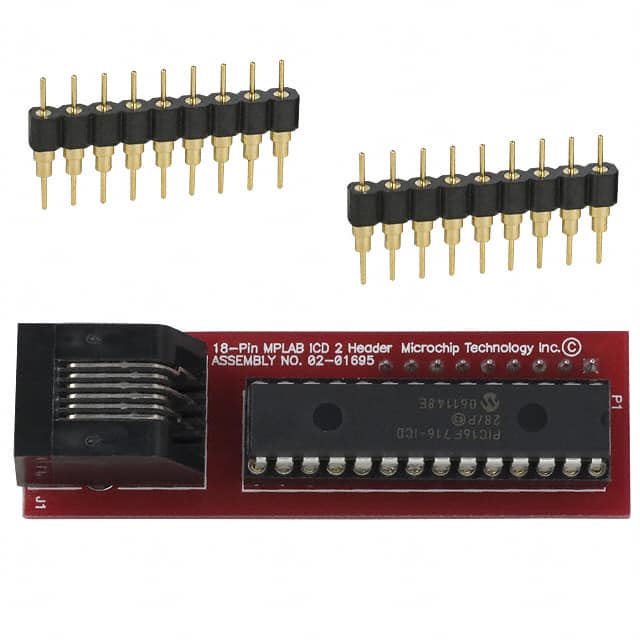

The Microchip Technology AC162054 is an 18-pin transition header specifically designed for use with the MPLAB ICD 2 in-circuit debugger and the PIC16F716 microcontroller. This header accepts a special ICD device (PIC16F716-ICD) that provides the debug circuitry required for transparent in-circuit debugging.
The header features a maximum supply voltage of 5.5V. It is intended for prototyping and development environments where the PIC16F716 device does not include built-in debug hardware. The transition header connects between the MPLAB ICD 2 module and the target application board via a socket on the bottom.
Engineers select this header when debugging PIC16F716-based designs, as it provides the necessary ICD signals (clock, data, MCLR) without consuming target device resources. The 18-pin count matches the PIC16F716 package.
As an accessory in the MPLAB ICD 2 ecosystem, this header plugs into the standard MPLAB ICD 2 header connector and sits above the target socket. It is not a standalone programmer but a required adapter for certain device families.
The AC162054 is a Transition Header.
It is used with MPLAB ICD 2 and the PIC16F716 microcontroller.
The AC162054 has 18 pins.
The maximum supply voltage is 5.5V.
The ICD device used is the PIC16F716-ICD.
