| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
161,990 pcs
|
161990 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

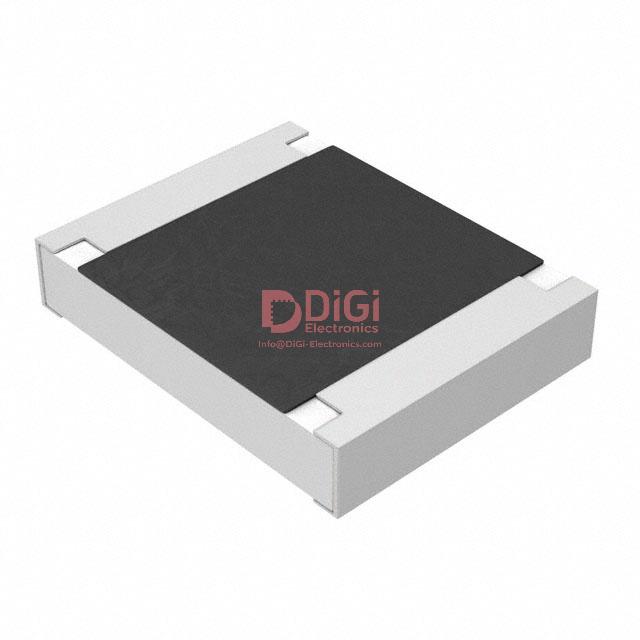

This Yageo AC1210JR-0710RL is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 10 Ohms with a tight tolerance of ±5% and a power rating of 0.5W (1/2W).
The resistor operates within a temperature range of -55°C to 155°C and features a temperature coefficient of ±200ppm/°C. Its package size is 1210 (3225 Metric), with dimensions of 3.10mm in length and 2.60mm in width.
Key features include AEC-Q200 qualification and moisture resistance, making it suitable for automotive applications. The component has 2 terminations and is supplied in a Tape & Reel (TR) standard package.
This component is compliant with RoHS3 standards and has an MSL level of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance is 10 Ohms.
The tolerance is ±5%.
The power rating is 0.5W, or 1/2W.
The operating temperature range is -55°C to 155°C.
The package size is 1210 (3225 Metric).
