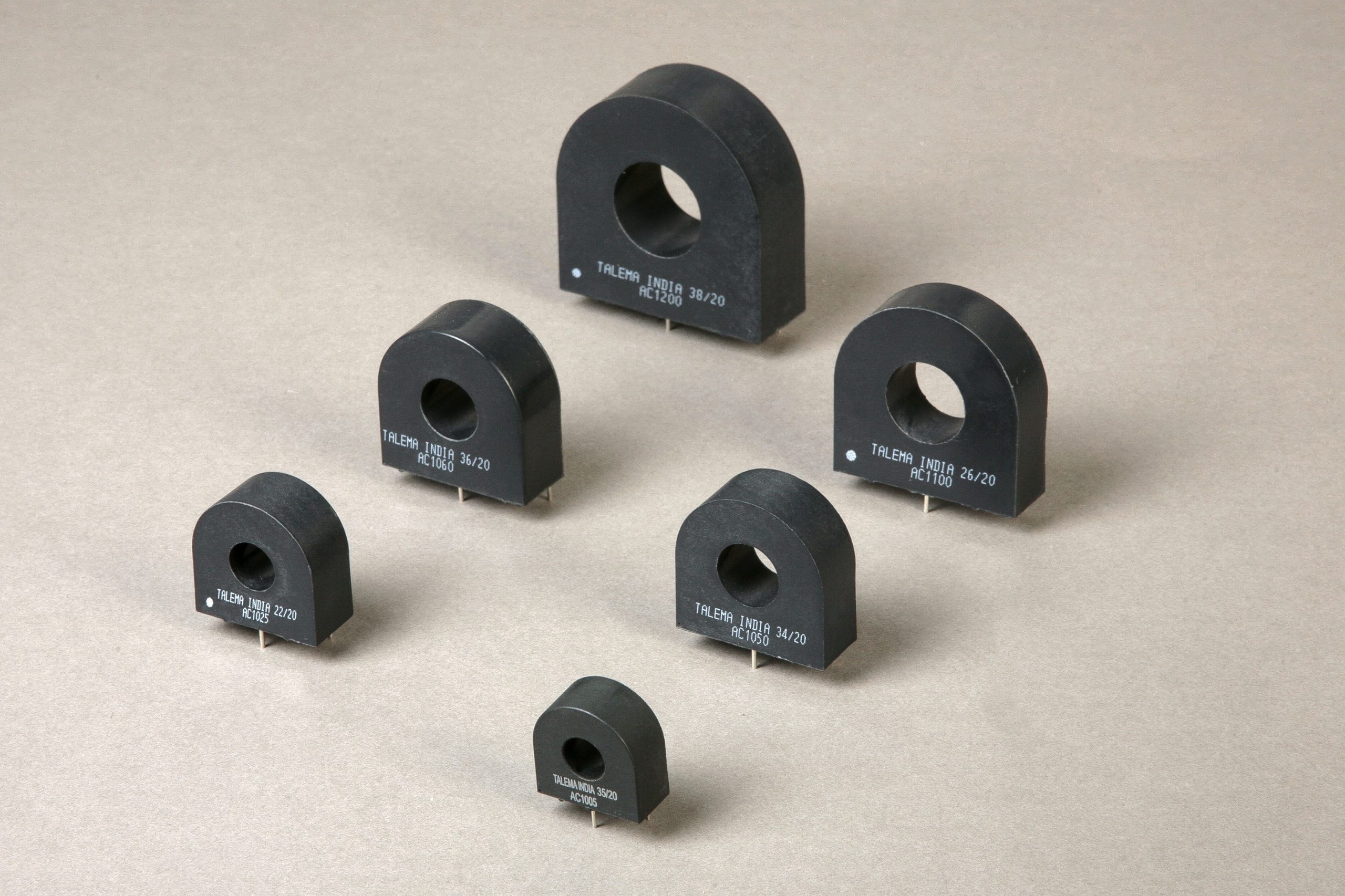

AC1100 The AC1100 is a current sense transformer designed for measuring high current loads. It features a 100A current rating and a through hole mounting style.
Mfr Part #:

AC1100

Available from 1 distributors
Mfr Name: Talema
Talema
The AC1100 is a current sense transformer designed for measuring high current loads. It features a 100A current rating and a through hole mounting style.
✓ Total Stock: 173 pcs
$ Price Range: $3.00

AC1100 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
173 pcs
On Request
173 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AC1100 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating (Amps)
Current Ratio
DC Resistance (DCR)
Frequency Range
Height
Length
Mounting Type
Storage Temperature
Tape & Reel
Termination Style
Type
Width
View Similar Products (0)

AC1100 Description

Short technical summary and product information.

The AC1100 is a current sense transformer manufactured by TALEMA. It is designed to sense currents up to 100A and operates within a frequency range of 50/60Hz. The transformer has a height of 44.50mm and a width of 14.30mm, with a length matching its height. It features a non-invasive solid core design, suitable for current measurement applications in electrical systems. The device mounts via through hole and terminates with PC pins, making it compatible with standard PCB mounting methods. Its electrical characteristics include a DC resistance of 21.3 Ohms, a current ratio of 1000:1, and a burden resistance of 100 Ohms.

AC1100 Quick Information

Product Type: Current Sense Transformer
Canonical Name: Current Sense Transformer AC1100

AC1100 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AC1100 Estimated Pricing

Qty Low High
1+ $3.00 $3.00

Estimated market price range - modelled values for guidance only, not live distributor offers.

AC1100 Features

  • Rated for 100A current measurement
  • Operates at 50/60Hz frequency
  • Through hole mounting style
  • PC pin termination for PCB mounting
  • DC resistance of 21.3 Ohms

AC1100 Applications

  • Used for overload current sensing applications.
  • Suitable for ground fault detection systems.
  • Ideal for metering and analog circuits.
  • Designed for primary currents up to 200A.
  • Compatible with 100 Ohms burden resistance.

AC1100 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the current rating of the AC1100 transformer?

The AC1100 transformer has a current rating of 100A.

What is the frequency range of the AC1100?

The frequency range of the AC1100 is 50/60Hz.

What mounting style does the AC1100 use?

The AC1100 uses through hole mounting.

What is the termination style of the AC1100?

The termination style is PC pin.

What is the DC resistance of the AC1100?

The DC resistance is 21.3 Ohms.
