| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
139,552 pcs
|
139552 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

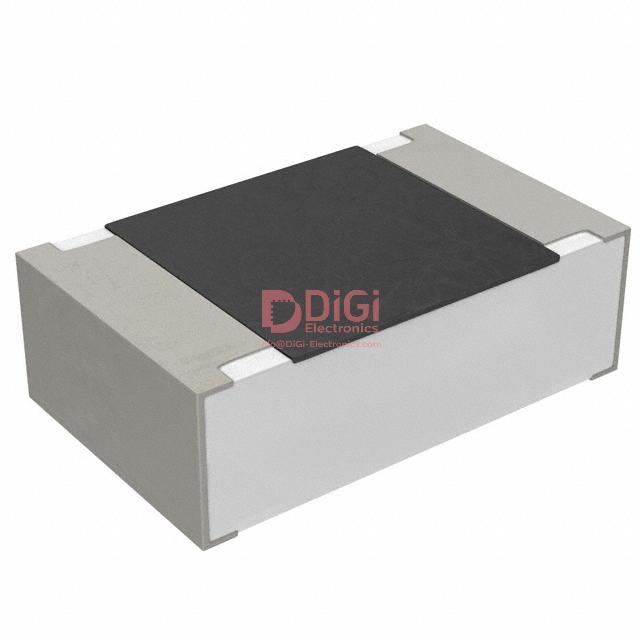

The Yageo AC0805FR-07150RL is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 150 Ohms with a tight tolerance of ±1%, ensuring precise circuit performance.
This resistor is rated for 0.125W (1/8W) of power and operates within a temperature range of -55°C to 155°C. The component features a thick film composition and comes in an 0805 (2012 Metric) package, suitable for automated assembly processes.
Key features include its AEC-Q200 automotive qualification and moisture resistance, making it suitable for demanding environments. The operating temperature coefficient is ±100ppm/°C, providing stability across temperature variations. Its dimensions are 2.00mm in length and 1.25mm in width, with a height of 0.60mm.
This part is also noted for its RoHS3 compliance and MSL 1 rating. The Yageo AC0805FR-07150RL is a reliable choice for applications requiring stable resistance characteristics in a compact surface-mount form factor.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 150 Ohms.
The tolerance is ±1%.
The power rating is 0.125W, or 1/8W.
The operating temperature range is -55°C to 155°C.
It comes in an 0805 (2012 Metric) package.
Yes, it features Automotive AEC-Q200 qualification.
