| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
17,485 pcs
|
17485 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
16,933 pcs
|
16933 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Supplier Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

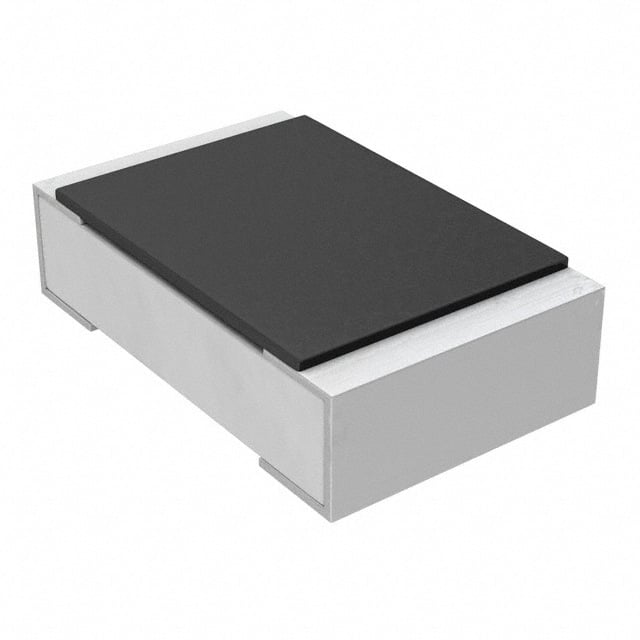

This Yageo AC0603FR-0722KL is a high-quality thick film chip resistor designed for surface mount applications. It offers a resistance value of 22 kΩ with a tight tolerance of ±1%, making it suitable for precise circuit applications. The resistor is rated for 0.1W (1/10W) of power and can operate across a wide temperature range from -55°C to 155°C.
Featuring a compact 0603 (1608 Metric) package size, this component is ideal for space-constrained designs. Its dimensions are 1.60mm in length and 0.80mm in width, with a height of 0.55mm. The resistor has two terminations and is constructed using thick film technology. It also includes features such as Automotive AEC-Q200 compliance and moisture resistance, indicating its suitability for demanding environments.
The AC0603FR-0722KL is designed for general-purpose electronic circuits where reliable performance and accurate resistance values are critical. Its robust construction and wide operating temperature range ensure stability and longevity in various applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22 kΩ.
The tolerance is ±1%.
The power rating is 0.1W (1/10W).
The operating temperature range is -55°C to 155°C.
The package type is 0603 (1608 Metric).
Yes, the resistor features Automotive AEC-Q200 compliance.
