| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,211 pcs
|
9211 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6,000 pcs
|
6000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Composition | |
| Features | |
| Height | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

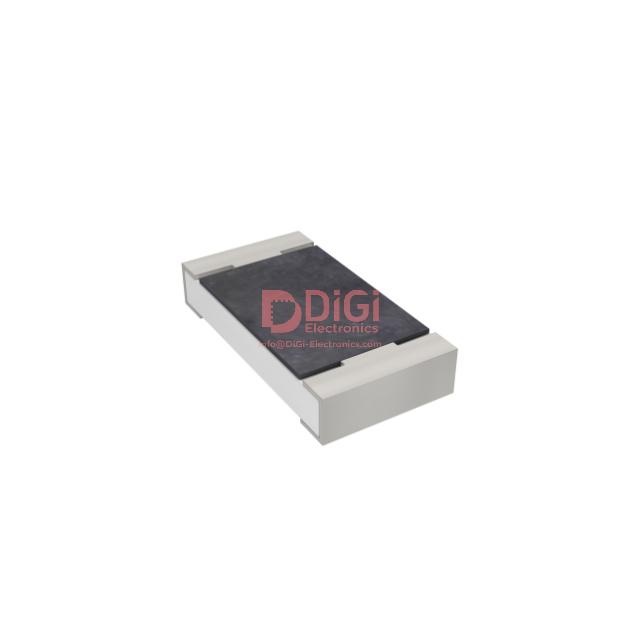

The Yageo AC0402FR-07680RL is a surface mount chip resistor designed for various electronic applications. It features a thick film composition, offering a resistance value of 680 Ohms with a tight tolerance of ±1%. The resistor is rated for a power of 1/16W and operates within a temperature range of -55°C to 155°C.
This component is housed in a compact 0402 (1005 Metric) package, measuring 1.00mm in length and 0.50mm in width, with a maximum seated height of 0.37mm. It has 2 terminations and a temperature coefficient of ±100ppm/°C.
Additional features include Automotive AEC-Q200 compliance and moisture resistance, making it suitable for demanding environments. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 680 ohms.
The tolerance is ±1%.
The power rating is 1/16W.
The operating temperature range is -55°C to 155°C.
It has a 0402 package size.
It is RoHS3 compliant.
The maximum height when seated is 0.37mm.
