| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,000 pcs
|
10000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Composition | |
| Dimensions | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Number of Terminations | |
| Operating Temperature | |
| Power (Watts) | |
| Ratings | |
| Resistance | |
| Supplier Device Package | |
| Temperature Coefficient | |
| Tolerance | |
| Width |

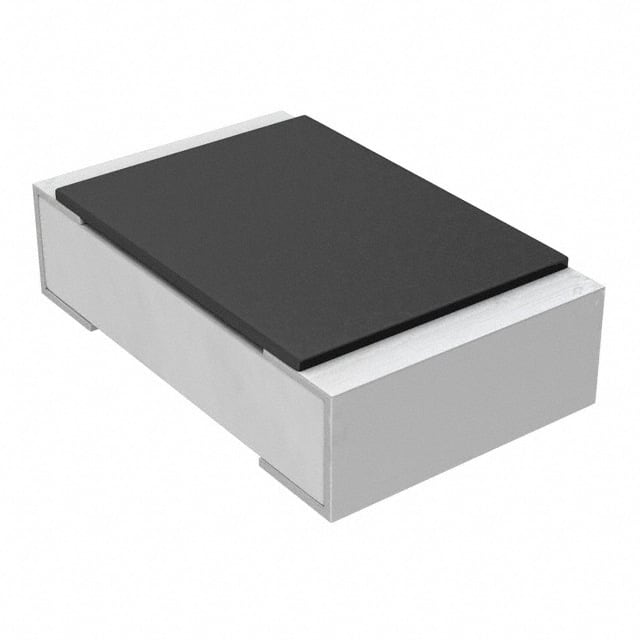

This Yageo AC0402FR-0722K6L is a thick film chip resistor designed for surface mount applications. It offers a resistance value of 22.6 kOhms with a tight tolerance of ±1% and a power rating of 0.063W (1/16W).
The operating temperature range for this component is -55°C to 155°C, with a temperature coefficient of ±100ppm/°C. It meets automotive AEC-Q200 standards and is moisture resistant.
The resistor comes in a compact 0402 (1005 Metric) package, measuring 1.00mm in length and 0.50mm in width. It has two terminations and a height of 0.37mm.
Key specifications include its thick film composition, AEC-Q200 rating, and moisture resistance, making it suitable for demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The resistance value is 22.6 kOhms.
The tolerance is ±1%.
The power rating is 0.063W, or 1/16W.
The operating temperature range is -55°C to 155°C.
The package type is 0402 (1005 Metric).
Yes, it features Automotive AEC-Q200 ratings.
