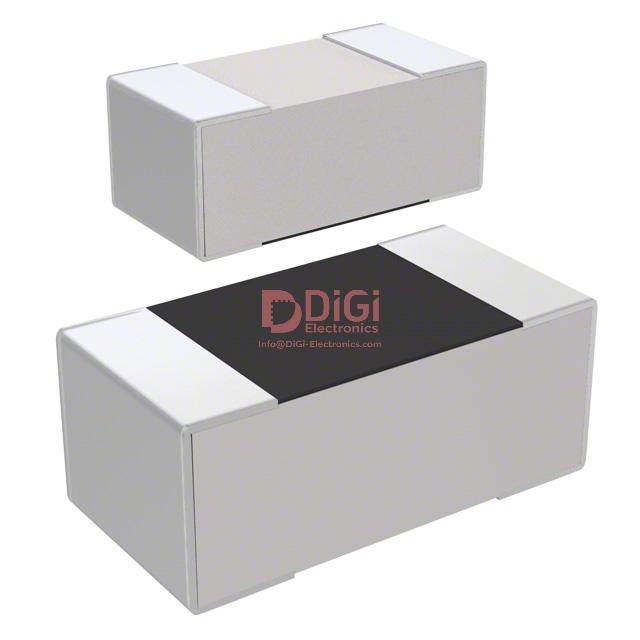

AC0402FR-071K3L The Yageo AC0402FR-071K3L is a surface mount chip resistor with a resistance of 1.3 kΩ and a tolerance of ±1%. It features a 1/16W power rating and operates within a temperature range of -55°C to 155°C.
Mfr Part #:

AC0402FR-071K3L

Available from 2 distributors
Mfr Name: Yageo
Yageo
The Yageo AC0402FR-071K3L is a surface mount chip resistor with a resistance of 1.3 kΩ and a tolerance of ±1%. It features a 1/16W power rating and operates within a temperature range of -55°C to 155°C.
✓ Total Stock: 59,570 pcs
$ Price Range: $0.05

AC0402FR-071K3L Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
29,785 pcs
On Request
29785 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
29,785 pcs
On Request
29785 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

AC0402FR-071K3L Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Automotive Grade
Composition
Duration
Features
Height
Length
Number of Terminations
Operating Temperature
Power (Watts)
Ratings
Resistance
Supplier Device Package
Tape & Reel
Temperature Coefficient
Tolerance
Width
View Similar Products (0)

AC0402FR-071K3L Description

Short technical summary and product information.

This Yageo AC0402FR-071K3L is a surface mount chip resistor designed for various electronic applications. It offers a resistance value of 1.3 kΩ with a tight tolerance of ±1%, ensuring precise circuit performance. The resistor has a power rating of 0.063W (1/16W) and a temperature coefficient of ±100ppm/°C, making it suitable for a wide operating temperature range from -55°C to 155°C.



The component is housed in a compact 0402 (1005 Metric) package, measuring 1.00mm x 0.50mm with a height of 0.37mm. It features a thick film composition and is designed with two terminations. The AC0402FR-071K3L is also noted for being moisture resistant and compliant with AEC-Q200 automotive standards, as well as RoHS3 regulations.



Its surface mount design facilitates automated assembly processes. The resistor's specifications make it a reliable choice for applications requiring stable performance under varying environmental conditions.

AC0402FR-071K3L Quick Information

Product Type: Chip Resistor - Surface Mount
Series: RC
Canonical Name: Yageo AC0402FR-071K3L Chip Resistor - Surface Mount 1.3 kΩ ±1% 1/16W ±100ppm/°C
Subcategory: Surface Mount

AC0402FR-071K3L Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AC0402FR-071K3L Estimated Pricing

Qty Low High
1+ $0.05 $0.05

Estimated market price range - modelled values for guidance only, not live distributor offers.

AC0402FR-071K3L Features

  • 1.3 kΩ resistance with ±1% tolerance.
  • 1/16W power rating for compact designs.
  • Wide operating temperature range: -55°C to 155°C.
  • 0402 (1005 Metric) surface mount package.
  • AEC-Q200 qualified for automotive use.

AC0402FR-071K3L Applications

  • Used in signal filtering circuits
  • Suitable for voltage division
  • Ideal for current limiting
  • Applicable in automotive electronics
  • Designed for compact electronic devices

AC0402FR-071K3L FAQs

6 frequently asked questions generated from this part’s specifications.
What is the resistance value of the AC0402FR-071K3L resistor?

The resistance value is 1.3 kΩ.

What is the tolerance of the AC0402FR-071K3L resistor?

The tolerance is ±1%.

What is the power rating of the AC0402FR-071K3L resistor?

The power rating is 0.063W, or 1/16W.

What is the operating temperature range for the AC0402FR-071K3L resistor?

The operating temperature range is -55°C to 155°C.

What package size is the AC0402FR-071K3L resistor available in?

The resistor is available in a 0402 (1005 Metric) package.

Does the AC0402FR-071K3L resistor meet automotive standards?

Yes, it is rated AEC-Q200 and features moisture resistance.
