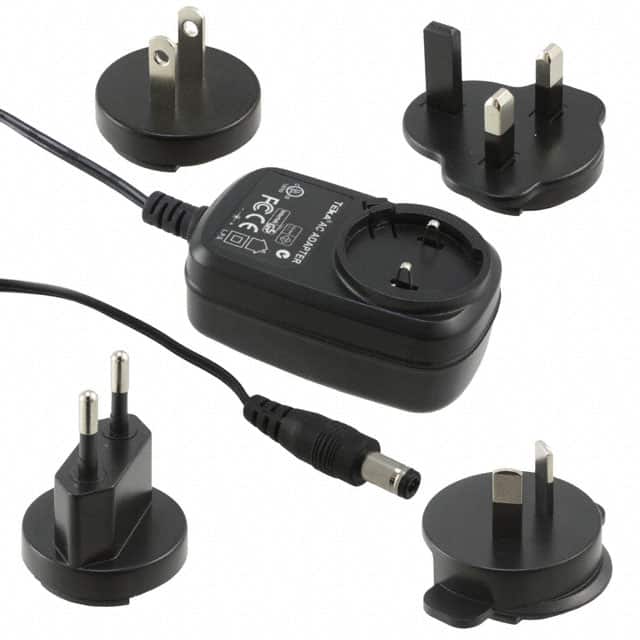

AC002014 The Microchip Technology AC002014 is a 9V, 1.3A AC/DC wall mount power adapter. It features a universal 110-220V input and a 5.5mm OD x 2.5mm ID center-positive output connector.
Mfr Part #:

AC002014

Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology AC002014 is a 9V, 1.3A AC/DC wall mount power adapter. It features a universal 110-220V input and a 5.5mm OD x 2.5mm ID center-positive output connector.
Stock on Request

AC002014 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Form
Input Connector
Input Type
Output Connector
Polarization
Power (Watts)
Region Utilized
Voltage
View Similar Products (0)

AC002014 Description

Short technical summary and product information.

The Microchip Technology AC002014 is a versatile 9V wall mount power supply designed for international use, accepting a universal input voltage range of 110-220V AC. This adapter delivers a maximum output current of 1.3A, providing up to 7.2W of power.



It features a standard 5.5mm outer diameter by 2.5mm inner diameter output jack with a center-positive polarity. The input connector is a multi-blade type, suitable for various international outlets. This power supply is suitable for ITE (Commercial) applications and is designed in a Class II wall mount form factor.



This unit replaces the older AC162039 model and is compatible with various Microchip development boards, including the MPLAB ICD 2, Explorer 16, PICSTART Plus, and PRO MATE II.

AC002014 Quick Information

Product Type: AC DC Desktop, Wall Adapter
Canonical Name: AC002014 9V 1.3A Wall Mount Power Supply
Subcategory: Wall Adapter

AC002014 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

AC002014 Features

  • 9V nominal output voltage.
  • 1.3A maximum output current.
  • Universal 110-220V AC input.
  • 5.5mm OD x 2.5mm ID output jack.
  • Center positive polarity.

AC002014 Applications

  • Suitable for ITE (Commercial) applications.
  • Powers Microchip development boards.
  • International voltage compatibility.
  • Replaces AC162039 power supply.

AC002014 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the AC002014 power supply?

The output voltage is 9V.

What is the maximum output current for the AC002014?

The maximum output current is 1.3A.

What is the power rating of the AC002014 wall adapter?

The power rating is 7.2W.

What is the input voltage range for the AC002014?

The input voltage range is 110-220V AC.

What are the dimensions of the output connector on the AC002014?

The output connector is 5.5mm OD x 2.5mm ID.

What is the polarity of the AC002014's output connector?

The output connector has center positive polarity.

What type of input connector does the AC002014 use?

It uses a multi-blade input connector.
