| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Container Type | |
| Design | |
| Height | |
| Internal Height | |
| Internal Length | |
| Internal Width | |
| Length | |
| Material | |
| Thickness | |
| Weight | |
| Width |

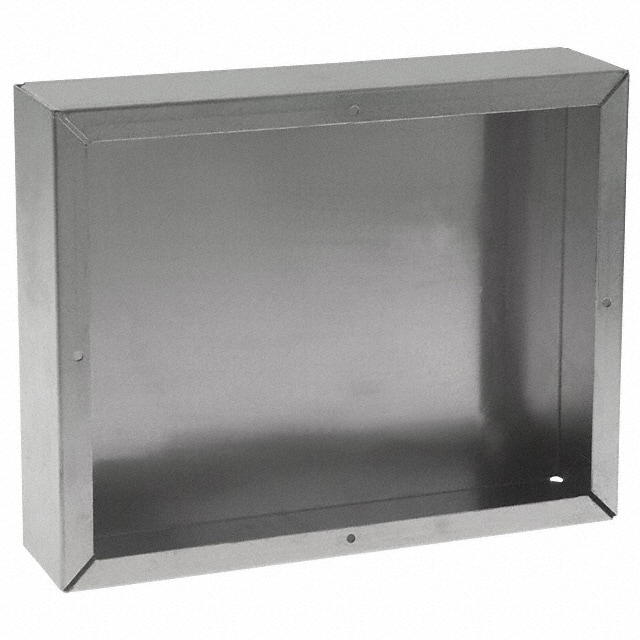

The Bud Industries AC-406 is a natural aluminum chassis from the Aluminum Chassis Series. It is welded at stress points for maximum strength and rigidity, with sides folded in at the bottom for additional support. An optional bottom plate can be easily attached.
Externally, the chassis measures 9.000" (228.60mm) in length, 7.000" (177.80mm) in width, and 2.000" (50.80mm) in height. Internally, it provides 8.920" (226.57mm) length, 6.920" (175.77mm) width, and 1.920" (48.77mm) height. The material is aluminum with a natural finish, and the unit weighs 0.5 lbs.
This open-end chassis design is suitable for housing electronic assemblies, prototyping, and mounting components. The chassis is RoHS3 compliant and REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $16.00 | $16.00 |
| 5+ | $15.99 | $15.99 |
| 10+ | $13.35 | $13.35 |
| 50+ | $12.12 | $12.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
External dimensions are 9.000" L x 7.000" W x 2.000" H (228.60mm x 177.80mm x 50.80mm).
Internal dimensions are 8.920" L x 6.920" W x 1.920" H (226.57mm x 175.77mm x 48.77mm).
The chassis is made of aluminum with a natural finish.
Yes, it is listed as RoHS3 compliant, though this is unverified.
The weight is 0.5 lbs.
Yes, the design is open end(s) for easy access.
