| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
310 pcs
|
310 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Aging | |
| Drive Level | |
| ESR (Equivalent Series Resistance) | |
| Frequency | |
| Frequency Coefficient | |
| Frequency Tolerance | |
| Height | |
| Industrial Grade | |
| Insulation Resistance | |
| Lead Style | |
| Length | |
| Load Capacitance | |
| MSL (Moisture Sensitivity Level) | |
| Mounting Type | |
| Operating Mode | |
| Operating Temperature | |
| Package / Case | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Turnover Temperature | |
| Type | |
| Width |

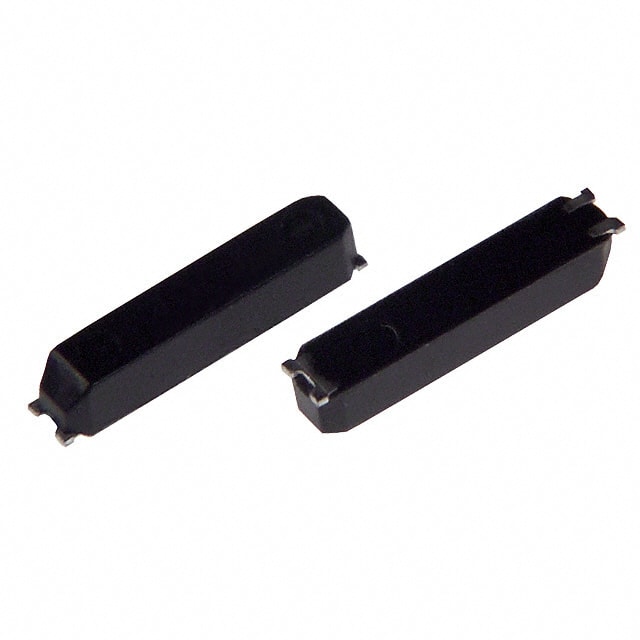

The ABS13-32.768KHZ-T is a 32.768 kHz tuning fork crystal from Abracon LLC, designed for surface mount assembly. It operates in fundamental mode with a nominal frequency of 32.768 kHz and a load capacitance of 12.5 pF. The crystal offers a frequency tolerance of ±20 ppm at 25°C and a maximum equivalent series resistance (ESR) of 65 kΩ.
This crystal is suitable for commercial and industrial applications, including wireless communications, PDAs, and palm pilots. It supports an extended operating temperature range of -40°C to +85°C and has a storage temperature range of -55°C to +125°C. The frequency coefficient is -0.035 ppm/°C², and aging is limited to ±3 ppm in the first year.
The ABS13-32.768KHZ-T is packaged in a 4-SMD flat lead case measuring 6.9 x 1.4 x 1.4 mm. It is supplied in tape and reel packaging with 3000 pieces per reel. The component is RoHS/RoHS II compliant with an exemption for lead in high temperature solder per 2015/863/EU Annex 7(a). Moisture sensitivity level is Level 1 (unlimited).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
| 10+ | $0.61 | $0.61 |
| 100+ | $0.58 | $0.58 |
| 250+ | $0.55 | $0.55 |
| 500+ | $0.53 | $0.53 |
| 1,000+ | $0.50 | $0.50 |
| 3,000+ | $0.48 | $0.48 |
| 6,000+ | $0.45 | $0.45 |
| 9,000+ | $0.43 | $0.43 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
32.768 kHz.
12.5 pF.
-40°C to +85°C.
4-SMD, Flat Lead, 3 Leads.
Yes, RoHS/RoHS II compliant with Pb in high temperature solder exempt per 2015/863/EU Annex 7(a).
±20 ppm at 25°C.
Maximum 65 kΩ.
