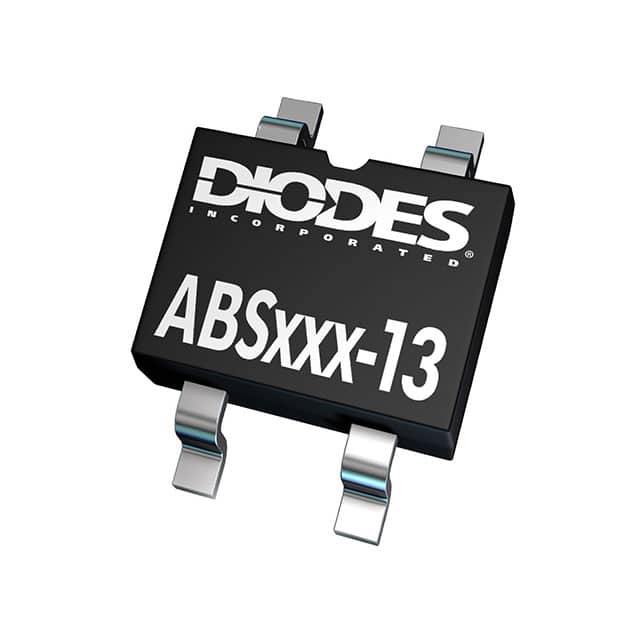

ABS10A-13 The ABS10A-13 is a 1000V, 1.0A single-phase bridge rectifier from Diodes Incorporated. It comes in a surface-mount 4-SOPA package.
Mfr Part #:

ABS10A-13

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The ABS10A-13 is a 1000V, 1.0A single-phase bridge rectifier from Diodes Incorporated. It comes in a surface-mount 4-SOPA package.
✓ Total Stock: 211,020 pcs
$ Price Range: $0.11 - $0.47

ABS10A-13 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
211,020 pcs
On Request
211020 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ABS10A-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Diode Type
Forward Voltage
Halogen Free
Lead Style
Mounting Type
Operating Temperature
Reverse Current
SVHC Present
Storage Temperature
Supplier Device Package
Tape & Reel
Technology
Voltage
Weight
View Similar Products (0)

ABS10A-13 Description

Short technical summary and product information.

The ABS10A-13 is a 1000V, 1.0A surface-mount glass passivated single-phase bridge rectifier from Diodes Incorporated. It is designed for AC to DC full wave rectification in applications such as SMPS, LED lighting, adapters, battery chargers, home appliances, office equipment, and telecommunications.



Electrical characteristics include a peak repetitive reverse voltage (VRRM) of 1000V, average rectified output current (IO) of 1.0A at 30°C, and a low forward voltage drop (VF) of 1.1V at 25°C. The device can withstand a non-repetitive peak forward surge current (IFSM) of 35A for 8.3ms, with an I²t rating of 5.08 A²s. Reverse current (IR) is 5µA at 25°C. Operating junction temperature ranges from -55°C to +150°C.



The part is housed in a miniature SOPA-4 package (4-SMD, gull wing leads) with a weight of 0.10g. It is supplied in tape and reel packaging with 5000 units per reel. The case material is molded plastic rated UL 94V-0, and terminals have a matte tin finish. Moisture sensitivity is Level 1 per J-STD-020.

ABS10A-13 Quick Information

Product Type: Bridge Rectifier
Series: ABS10A
Canonical Name: ABS10A-13 Surface Mount Single-Phase Bridge Rectifier, 1kV, 1A
Subcategory: Single Phase Bridge Rectifier

ABS10A-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): Level 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ABS10A-13 Estimated Pricing

Qty Low High
1+ $0.47 $0.47
10+ $0.29 $0.29
100+ $0.18 $0.18
500+ $0.14 $0.14
1,000+ $0.11 $0.11
5,000+ $0.11 $0.11

Estimated market price range - modelled values for guidance only, not live distributor offers.

ABS10A-13 Features

  • Glass passivated die construction for reliability.
  • Miniature SOPA-4 package saves PCB space.
  • Rated for 1000V peak repetitive reverse voltage.
  • 1.0A average rectified output current.
  • Low forward voltage drop of 1.1V.

ABS10A-13 Applications

  • Ideal for SMPS AC-DC conversion circuits.
  • Used in LED lighting driver power supplies.
  • Suitable for battery charger rectification.
  • Applicable in home appliance power systems.
  • Used in telecommunication equipment power supplies.

ABS10A-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the peak repetitive reverse voltage (VRRM) of the ABS10A-13?

1000 V.

What is the average rectified output current (IO) rating?

1.0 A at TA = +30°C.

What is the forward voltage drop (VF) at 25°C?

1.1 V.

What package is the ABS10A-13 available in?

Surface-mount 4-SOPA (SOPA-4) case with gull wing leads.

What is the non-repetitive peak forward surge current (IFSM)?

35 A (8.3ms single half sine-wave).

What is the operating temperature range?

-55°C to 150°C (junction).

Is the ABS10A-13 RoHS compliant?

Yes, RoHS3 compliant with lead-free finish. It is also Halogen- and Antimony-free (Green device).
